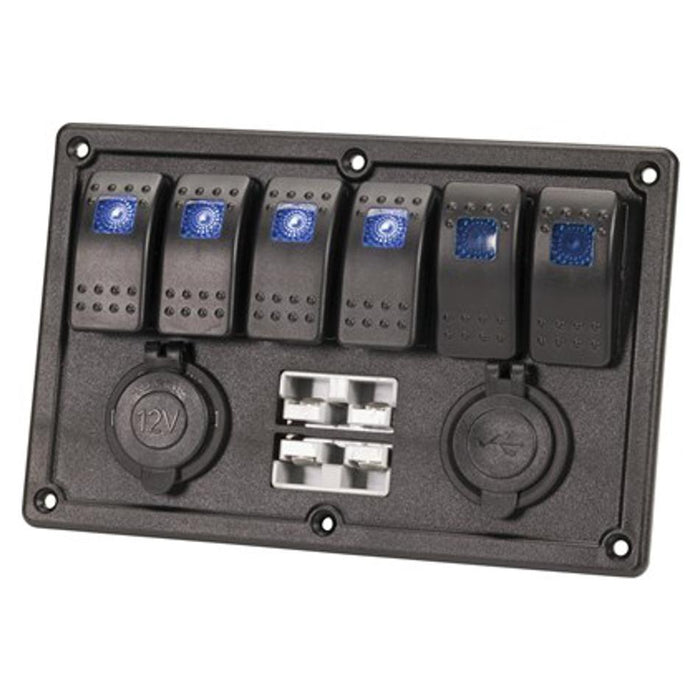

6 Way Illuminated Switch Panel With Usb, 12V And 2 X Battery Plugs_1
SKU SZ1930_E
by Electus

6 Way Illuminated Switch Panel With Usb, 12V And 2 X Battery Plugs

$149.00 - $149.00
$149.00
$149.00
$149.00 - $149.00
$149.00

or payment options selectable at checkout:

laybuy-logo-icon 6x $24.83

afterpay-logo-icon 4x $37.25

zip-logo-icon 4x $37.25

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $3)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • This flush-mount switch panel features high-current illuminated rocker switches to control lighting and other power circuits in your boat or vehicle. In addition, two USB ports provide power to your USB devices, and a cigarette lighter socket and two 50A Battery connectors provide power to 12V devices such as fridges, 12V compressors, handheld spotlights, etc. Pre-wired to help make the installation straightforward.
    • Available in 4-way (SZ1928) or 6-way (SZ1930)
    FEATURES
    • 2 x 50A battery Connectors
    • 2 x USB-A Ports with cover
    • 6 x 3 pole switches with illumination function
    • 12V Cigarette Socket with cover
    • Surface mountable
      • SPECIFICATIONS
      USB: 3.1A max. (Shared)
      Fuse Holders: 2 x 15A
      4-WAY: SZ1928
      6-WAY: SZ1930

      A flush mount switch panel with 50A battery connectors, USB A ports, 3 pole switches and a cigarete socket. All pre-wired to help make the installation straightforward.

  • DC Voltage 12V, 24V
    DC Voltage Output 1 2 x 50A Battery Connectors
    DC Voltage Output 2 2 x USB-A Ports with cover 3.1A max shared
    DC Voltage Output 3 1 X 12V Cigarette Socket with cover
    Length 120mm
    Width 185mm
    Depth 100mm
    Packaged Volume 4.07l
    Packaged Weight 0.52kg
    Packaged Length 26.5cm
    Packaged Width 16cm
    Packaged Height 9.6cm
    Availability Stocked item
