Electus 80A 32Vdc Panel Mount Circuit Breaker SZ2087_1
SKU SZ2087_E
by Electus

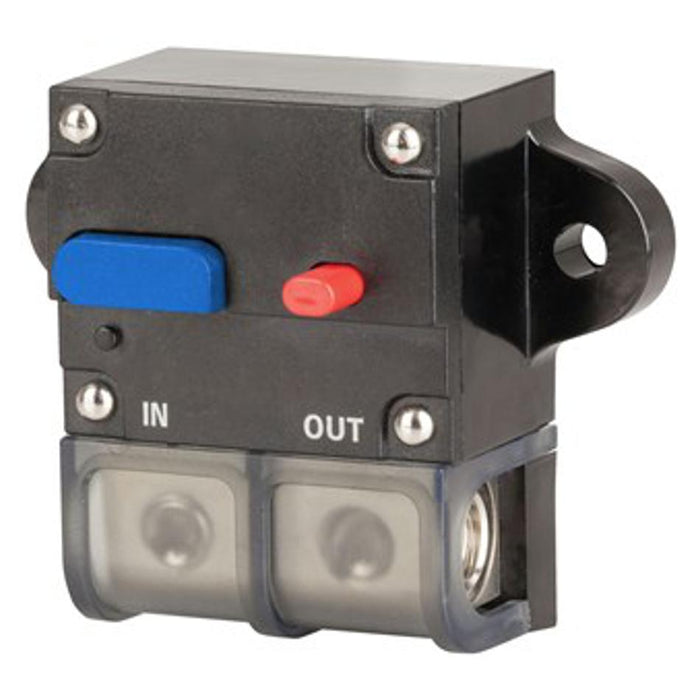

Electus 80A 32Vdc Panel Mount Circuit Breaker SZ2087

$53.90 - $53.90
$53.90
$53.90
$53.90 - $53.90
$53.90

or payment options selectable at checkout:

laybuy-logo-icon 6x $8.98

afterpay-logo-icon 4x $13.47

zip-logo-icon 4x $13.47

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $3)

available-green-tick-icon AVAILABLE (may not arrive before Christmas)
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • The reset switch is high grade and will not fail in a short period unlike other units in the market. It has a protective plastic cover to prevent accidental shortage. Incorporates multi-wire gauge inputs and outputs, perfect for high end car audio installations, automotive wiring or solar installations. Terminals are platinum plated. Not IP rated for water or dust protection.

    • Rated maximum 80A current
    • Rated maximum voltage 32VDC
    • Trip-free operation
    • Built-in brass block suits 0AWG wire
    • Switchable/manual push-to-trip operation
    • Visible trip indication
    • Prominent trip/circuit breaker button

    A high quality, heavy duty 12V or 24V panel mount circuit breaker rated to 80 amps. Comes with a cover and connects via screw terminals to your circuit.

  • Contains Button Cell false
    Length 85mm
    Width 68mm
    Height 35mm
    Weight 210g
    Packaged Volume 0.49l
    Packaged Weight 0.23kg
    Packaged Length 13cm
    Packaged Width 7.5cm
    Packaged Height 5cm
    Availability Stocked item
