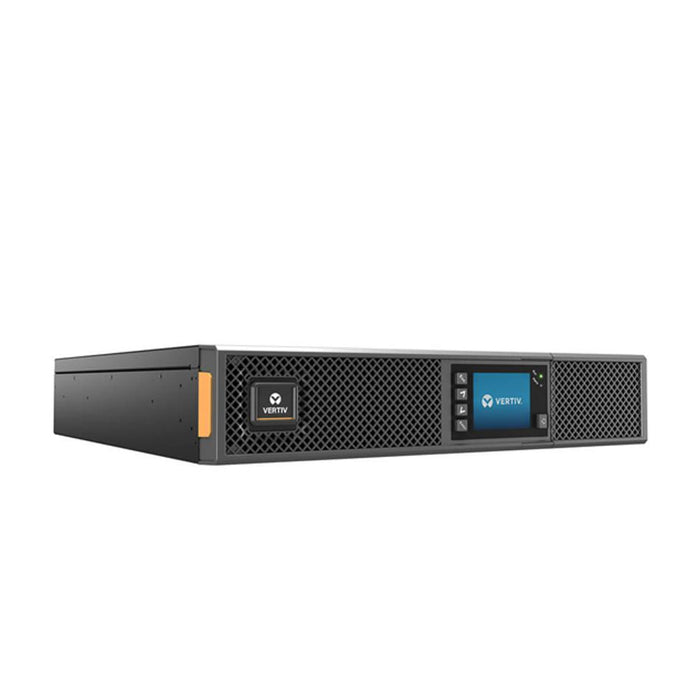

Vertiv Ups Gxt5-1000Irt On-Line Ups Rack/Tower 1000Va/1000W UP4506 1
SKU UP4506
by Vertiv

Vertiv Ups Gxt5-1000Irt On-Line Ups Rack/Tower 1000Va/1000W UP4506

$2,962.76 - $2,962.76
$2,962.76
$2,728.99
$2,728.99 - $2,728.99
$2,728.99

or payment options selectable at checkout:

laybuy-logo-icon $1,528.99 + 5x $240

Found a lower price? Give us a call

delivery-truck-icon $5.99 Nationwide (+$3 rural)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • The Vertiv™ Vertiv® GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system.

    The Vertiv® GXT5 is a single phase UPS built on the super reliable platform of GXT series- supporting over a million critical systems all over the world.

    • Top-level on-line double conversion UPS for mission-critical applications
    • Unity output power factor
    • LCD multi-language color display (gravity sensing)
    • On-line (VFI) mode efficiency up to 94% at full load
    • Active ECO mode efficiency up to 98%
    • Energy Star® 2.0 certified
    • Controllable and programmable output sockets
    • Integrated solution with batteries and electronics
    • External battery cabinets auto-detection
    • Operates at full power up to 40ºC (up to 50ºC with derating) Intelligent Communication ready
    • Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability)
  • Rating 750VA/750W
    Rated Voltage 230VAC
    Rated Frequency 50/60Hz
    Frequency Range 40 to 70 Hz
    Power Factor ≥0.99
    Nominal Voltage 200/208/220/230/240 VAC
    Waveform Sine wave
    Inverter Overload Capability >200% minimum 250 mS,
    150 to 200% for 2 seconds;
    125 to 150% for 50 seconds;
    105 to 125% for 60 seconds
    Efficiency in Online Mode Up to 93%
    Inverter Bypass Up to 98%
    Output Receptacles 8x EN60320/C13
    Rated Voltage 36Vdc
    Charger Current Nominal 2.2 A; Maximum 8A
    Type Valve-regulated, non-spillable, lead acid
    Quantity x V x Rating 3 x 12V x 9.0Ah
    End Cell Voltage 1.67 V/cell (discharge voltage per cell will be
    from 1.67 Vdc to 1.90 Vdc, can be selected by PARAMSET)
    Floating Voltage Equalize charge: 2.35 V/cell; Float charge: 2.27 V/cell
    Battery Voltage Range 30 Vdc to 42.3 Vdc
    Internal Battery Backup Time(Approximate) 10% Load Capacity: 92.5 mins
    20% Load Capacity: 47 mins
    30% Load Capacity: 29 mins
    40% Load Capacity: 20 mins
    50% Load Capacity: 15 mins
    60% Load Capacity: 11.5 mins
    70% Load Capacity: 9.5 mins
    80% Load Capacity: 8 mins
    90% Load Capacity: 7 mins
    100% Load Capacity: 6 mins
    Operating Temperature, °C Full power up to 40 ºC
    (up to 50 ºC with derating)
    Storage Temperature, °C - 15 to + 40
    Relative Humidity 0 to 95% non-condensing
    Operating Elevation Up to 3,000 m at 25°C without derating
    Audible Noise <46 dBA, at 1 meter from sides,
    <43 dBA, at 1 meter from rear
    Safety IEC62040-1:2008 version, GS mark;
    CE: UL1778 5th Edition and
    CSA 22.2 No 107.1
    EMI/EMC/C-Tick EMC EN 62040-2:2006;
    EN 61000-3-3:2013;
    EN 61000-3-3:2013
    Transportation ISTA Procedure 1 A
    Surge Immunity ANSI C62.41 Category B IEC 61000-4-5 Surges/Lighting
    Dimensions (mm) 400 (w) x 430 (d) x 85 (h)
    Weight 16.5kg
