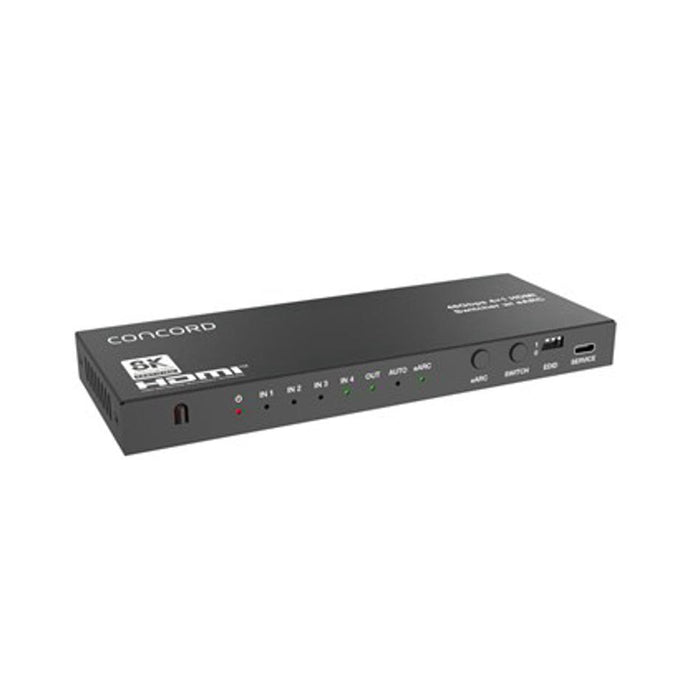

Concord 4-Way 8K Hdmi Switcher AC5011

Designed for applications where you have up to four HDMI sources that you need to switch onto one HDMI monitor or screen, all while maintaining 8K at 60Hz.

Toggle between HDMI sources manually at the touch of a button, from a distance using the included remote control, or automatically based on which HDMI source is playing.

CEC functionality enables you to  control source and volume from the connected output (eg. TV), advanced EDID management ensures optimal video output, and optical and analog audio output with ARC/eARC support simplifies and enhances audio connections in home theatre / soundbar setups.

Remote control and main power adaptor included.

• 4 HDMI inputs to 1 HDMI output

• Supports resolution up to 8K@60Hz, 8K@30Hz, 4K@120Hz
• Support 48Gbps FRL and 18Gbps TMDS video bandwidth
• HDMI 2.1 and HDCP 2.3 compliant
• VRR, ALLM, QMS, QFT, SBTM supported
• Audio de-embedding via optical and analog port
• Support CEC control from TV at output to source at input
• Support CEC volume control from TV to any eARC sound system
• Advanced EDID management
• ARC/eARC support
• ESD Protection

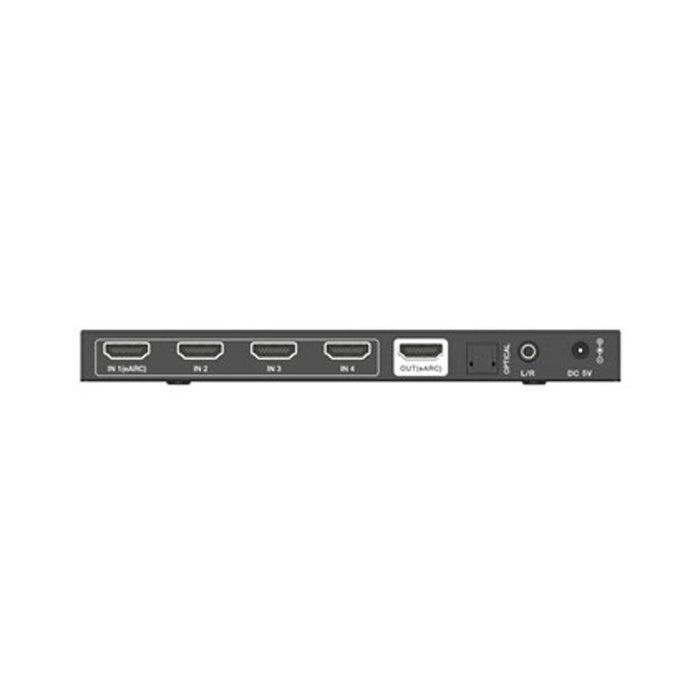

• Input: 4 x HDMI
• Output: 1 x HDMI with eARC, 1 x Optical, 1 x 3.5mm Stereo Jack
• HDMI Compliance: 2.1
• HDCP Compliance: 2.3
• Video Resolution: Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit
• Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
• Audio Formats:
- HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
- eARC Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
- Audio de-embedding output: Optical: LPCM 2.0CH/Dolby/DTS 5.1CH, Analog: LPCM 2CH

• HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
• Colour Depth: 8/10/12bit
• Weight: 315g
• Dimensions: 176(W) x 68(D) x 18(H)mm

In the box:

• Switcher
• 5v 1A Mains power adapter w/1.5m cable and barrel plug
• Remote Control
• 2x AAA batteries
• Manual
