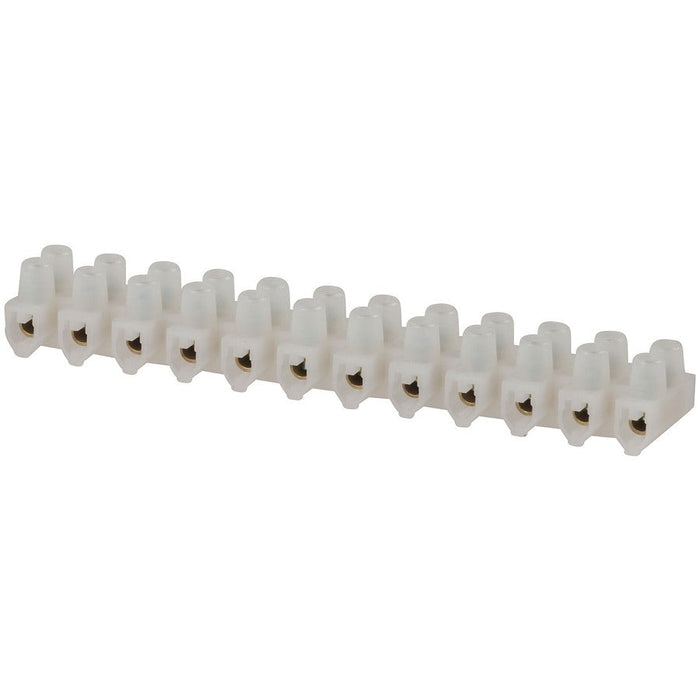

6 Amp 12-way Screw Terminal Strip - Folders
SKU HM3194
by Folders

12-way Screw Terminal Strips

$2.90 - $7.90
$2.90
$2.90
$2.90 - $7.90
$2.90
Pay in 4 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • Cuttable 12-way nylon screw terminal strips for joining conductors. Select the current rating after checking the cable-entry diameter, overall length and terminal spacing for the intended installation.

  • Terminal type Screw terminal
    Ways 12
    Body material Nylon
    Operating temperature -35 to 110 °C
    Mounting Fixed-pitch mounting holes

    Available options

    Supplier code Current rating
    HM3194 6 A
    HM3196 10 A
    HM3200 15 A
    HM3198 30 A
    HM3204 60 A

    Variant specifications

    Supplier code Current rating Cable entry diameter Length Terminal spacing
    HM3194 6 A 3.3 mm 114.5 mm 10 mm

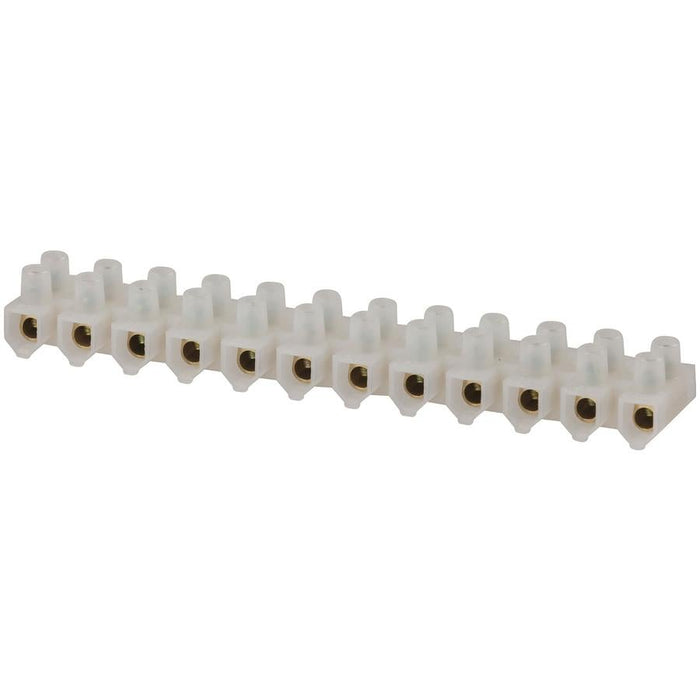

    HM3196 10 A 4.2 mm 128.8 mm 11 mm

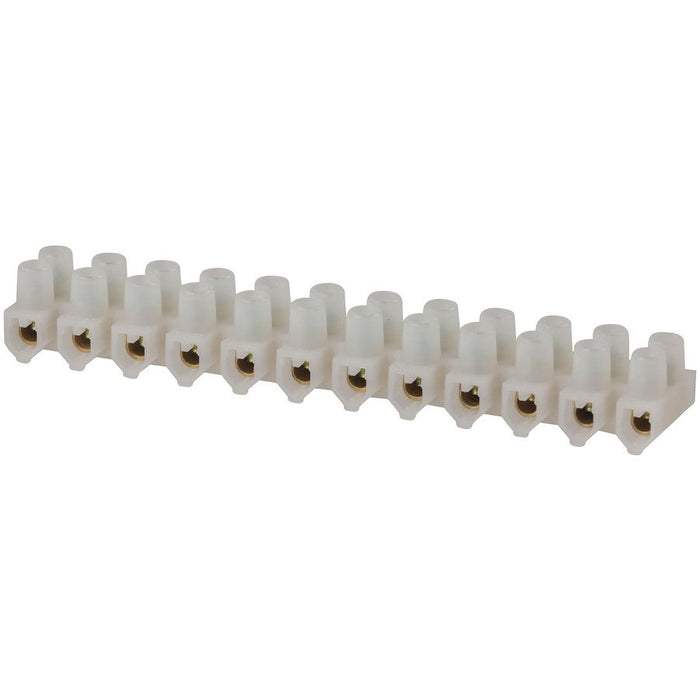

    HM3200 15 A 4.5 mm 136.8 mm 12 mm

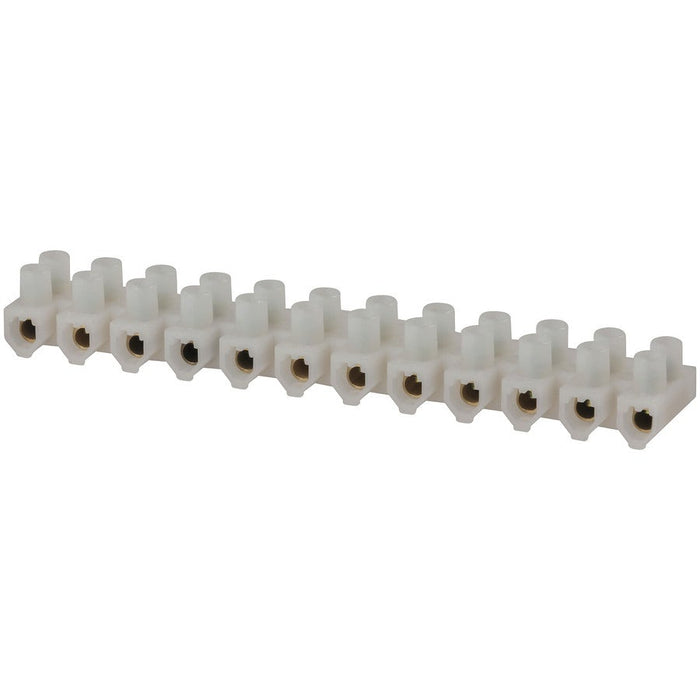

    HM3198 30 A 5.6 mm 164.5 mm 15 mm

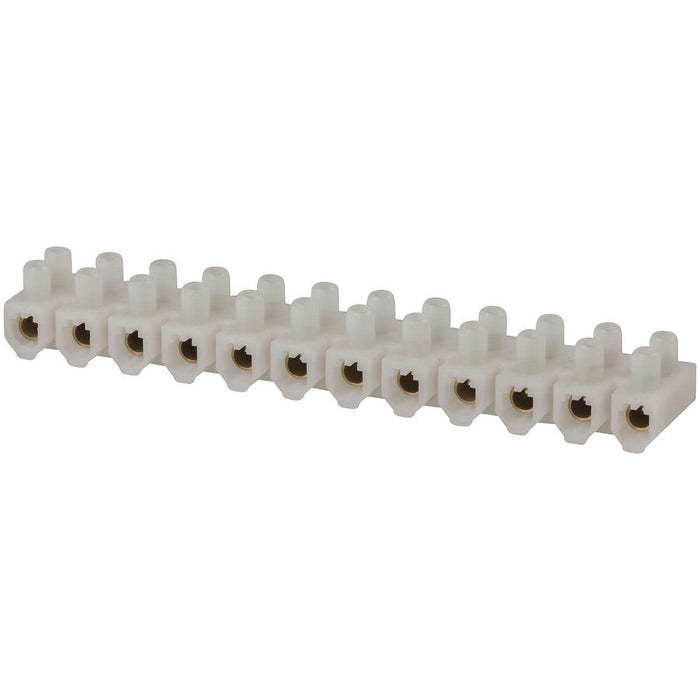

    HM3204 60 A 6.6 mm 193 mm 16.3 mm

    Current rating, cable-entry diameter, strip length and terminal spacing all change by variant.
