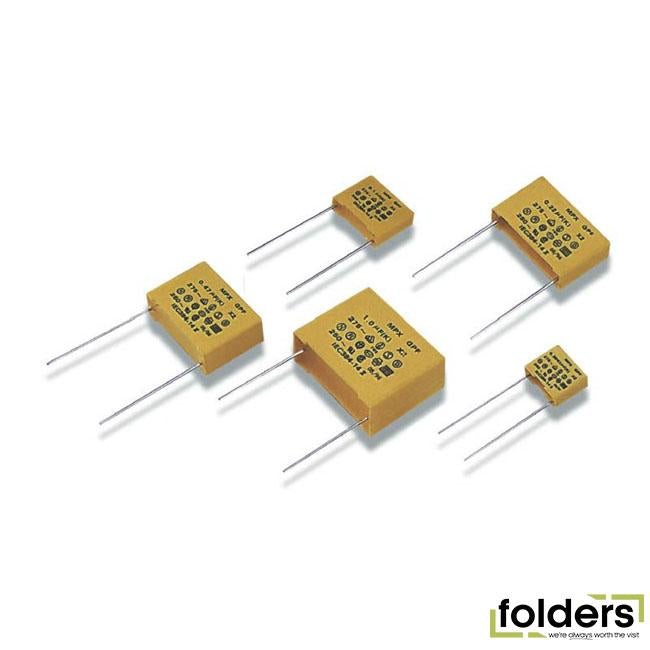

10nf 250vac metallised polypropylene x3 capacitor - Folders
SKU RG5230_E
by Folders

250VAC X2 Metallised Polypropylene Capacitor

$1.20 - $4.50
$1.20
$1.20
$1.20 - $4.50
$1.20
Pay in 4 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

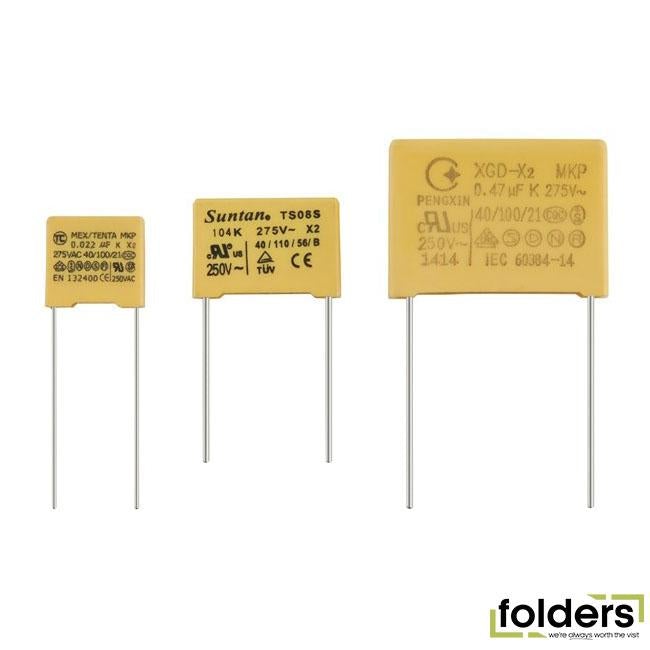

  • Metallised polypropylene X2 capacitors for through-hole PCB mounting. Choose the capacitance and check the lead pitch for your board.

    Available capacitance options: 10 nF, 22 nF, 47 nF, 100 nF, 220 nF, 470 nF.

  • Capacitor type X2 metallised polypropylene
    AC voltage rating 250VAC
    Tolerance ±10%
    Polarised No
    Operating temperature −40°C to +85°C
    Mounting Through-hole solder legs
    Package Square pack, two legs
    Sales unit One capacitor

    Capacitance and lead pitch

    Capacitance Lead pitch Supplier code
    10 nF 10mm RG5230
    22 nF 10mm RG5232
    47 nF 15mm RG5234
    100 nF 15mm RG5236
    220 nF 22.5mm RG5238
    470 nF 22.5mm RG5240
