SKU WH3026
by Electus

30 Gauge Silcon Hookup Wire - 5 Colours - 10m Roll

$18.90 - $18.90
$18.90
$18.90
$18.90 - $18.90
$18.90
or 4 payments of $4.73 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

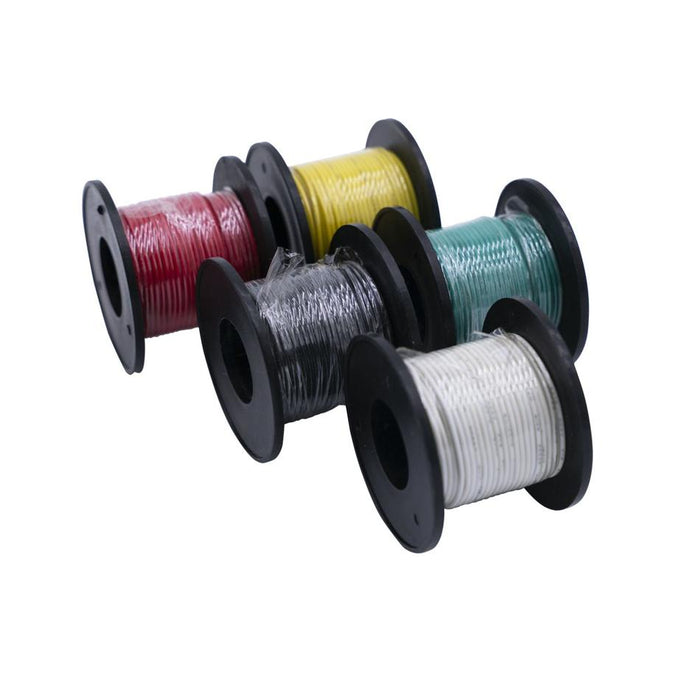

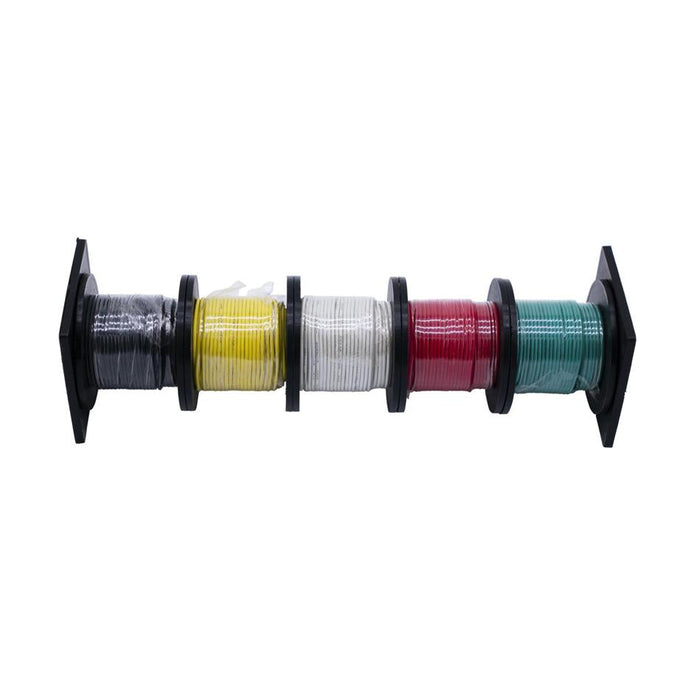

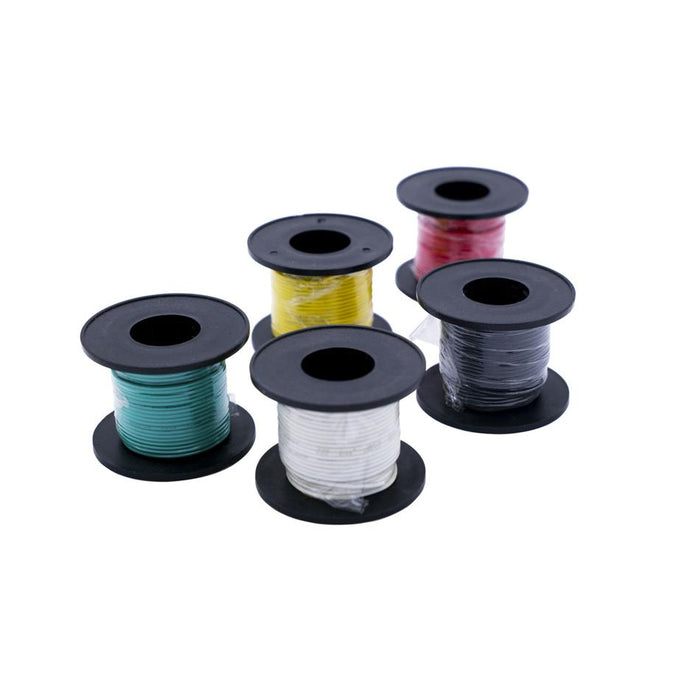

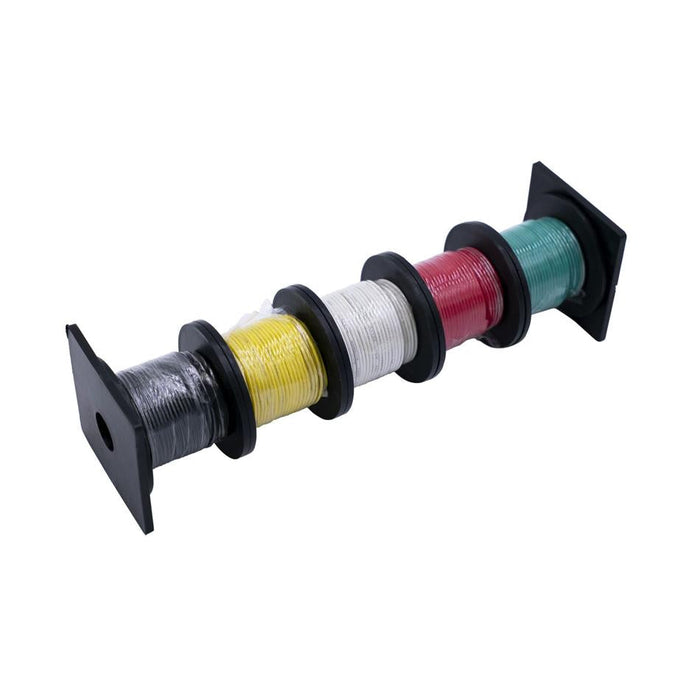

  • Five 10m rolls of ultra-flexible 30AWG wire in black, red, green, yellow, and white, perfect for clean, organised signal wiring and electronics projects.

    Specifications:

    • Conductor: Stranded tinned copper
    • Gauge:30awg (0.05mm²)
    • Length per roll: 10 metres
    • Insulation: Silicone rubber
    • Temperature rating: -60°C to +200°C
    • Voltage rating: 300V max
    • DC Current rating: 0.75A
    • DC Peak Current rating: 1A under 300 mins.
    • Resistance: 35.42 ω/100m
    • Stranding: Flexible Silicon rubber + 7x0.1mm TC
    • Material: Tinned Copper
    • Outer Diameter: 1.2mm
    • Colour set: Black, Red, Green, Yellow, White

    Features:

    • Includes five 10m rolls in black, red, green, yellow and white

    • Flexible 30AWG stranded tinned copper for easy routing

    • Silicone insulation rated for high temperatures and harsh environments

    • Ideal for signal-level wiring and internal electronic connections

    • Supplied in a compact carton with feed-through opening for organised storage

    • Carton has colour-coded feed holes and a ruler

  • Length 220.0mm
    Width 6.0mm
    Height 6.0mm
    Diameter 6.0mm
    Weight 0.5kg
    Packaged Dimensions 22.1cm(Length) x 6.0cm(Width) x 6.3cm(Height)
