2 Pole PC Mount Pluggable Header - 5.08mm - Horizontal - Folders
SKU HM3102
by Folders

5.08mm PCB Pluggable Terminal Headers — 2 - 5 Pins

$1.50 - $2.70
$1.50
$1.50
$1.50 - $2.70
$1.50
Pay in 4 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • PCB-solder plug headers for the 5.08 mm pluggable terminal-block system. Select both orientation and pole count to match the mating socket and board layout.

  • Connector gender Plug
    Termination PCB solder pins
    Pitch 5.08 mm (0.2 in)
    Pin material Tin-plated brass
    Pin size 1 mm
    PCB hole diameter 1.5 mm
    AC voltage rating 300 V
    AC current rating 12 A

    Available options

    Supplier code Orientation Poles
    HM3102 Horizontal 2

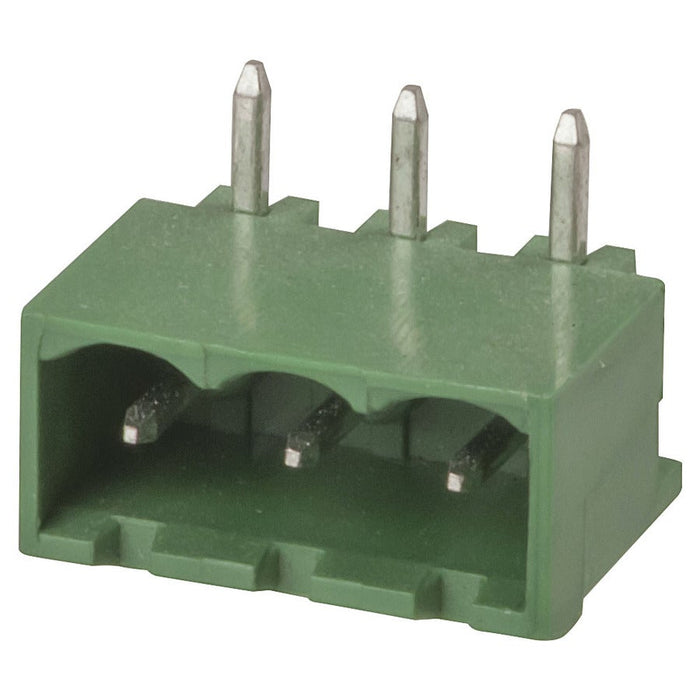

    HM3103 Horizontal 3

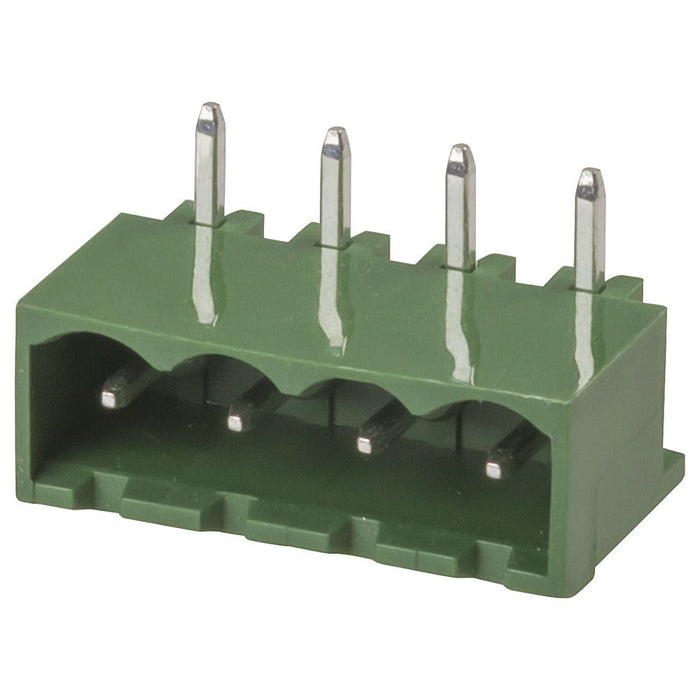

    HM3104 Horizontal 4

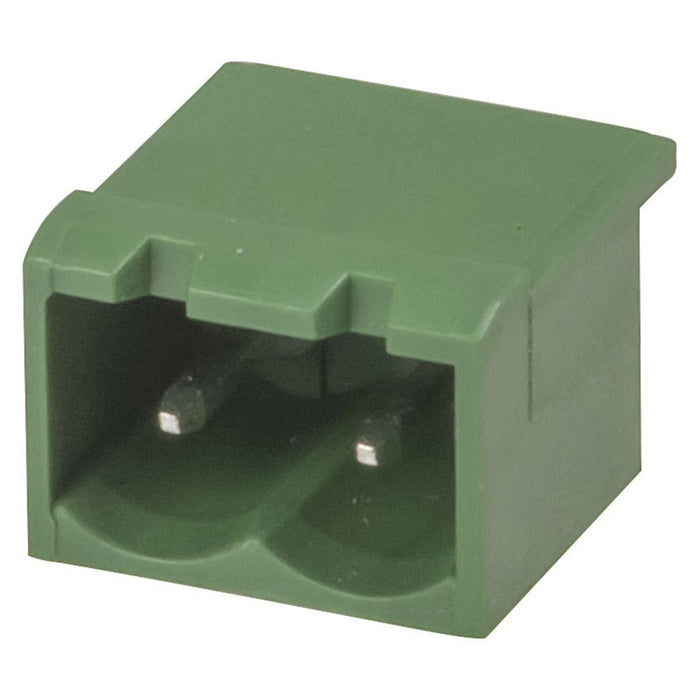

    HM3112 Vertical 2

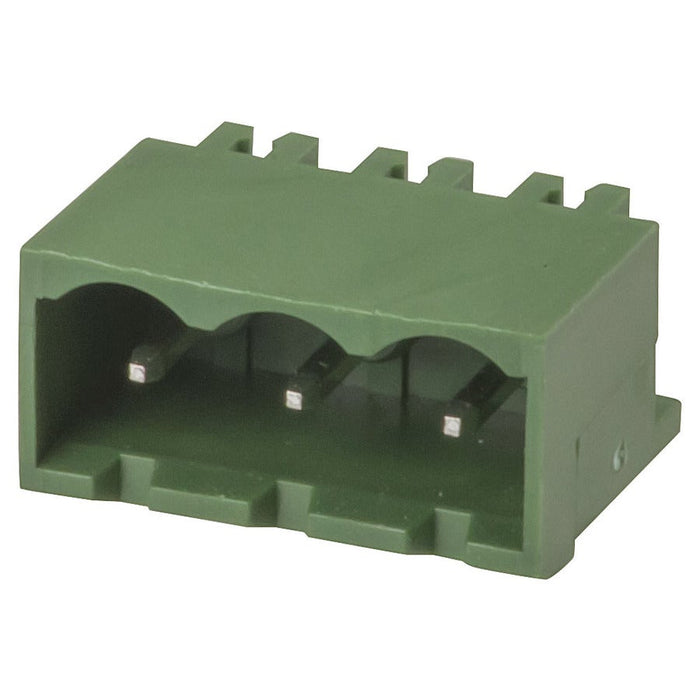

    HM3113 Vertical 3

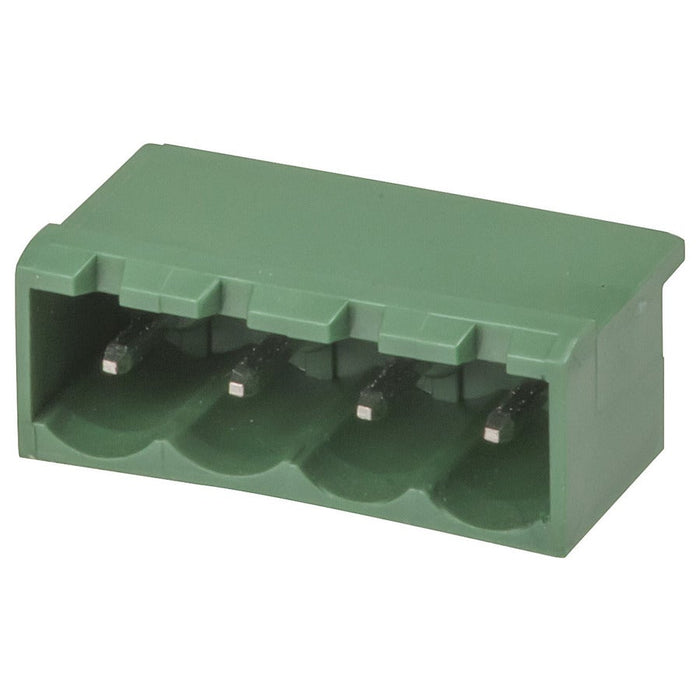

    HM3114 Vertical 4

    Orientation controls the header direction; Poles is the contact count.
