SKU XC9207
by Arduino

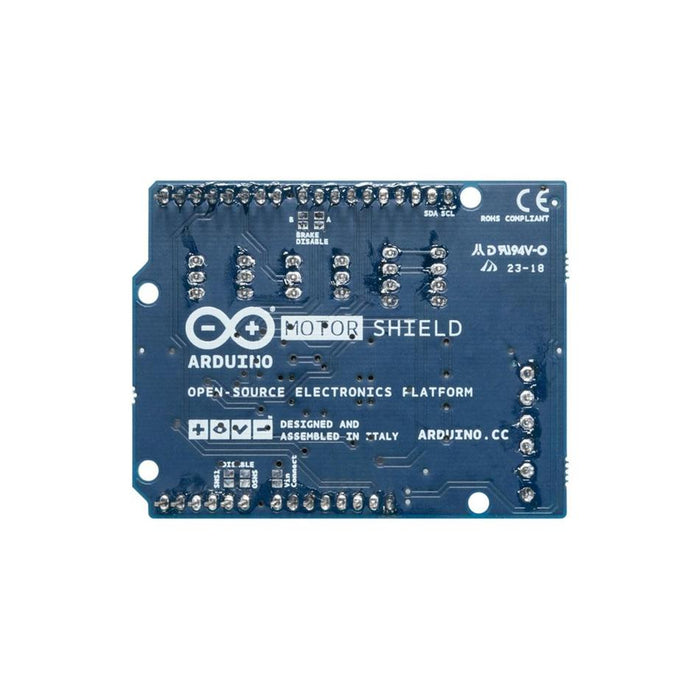

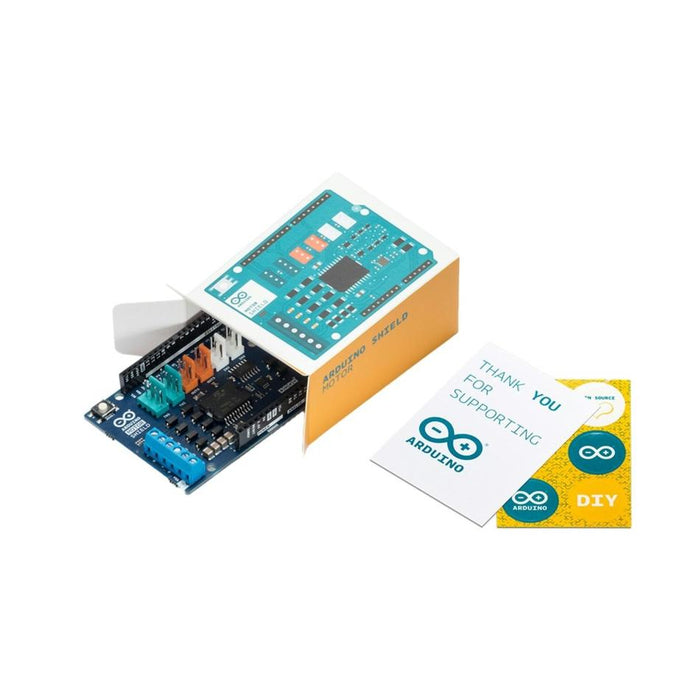

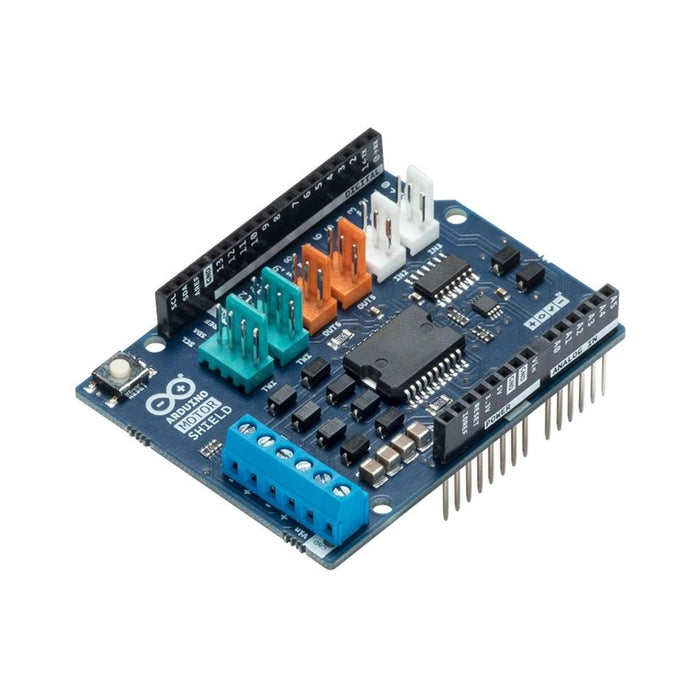

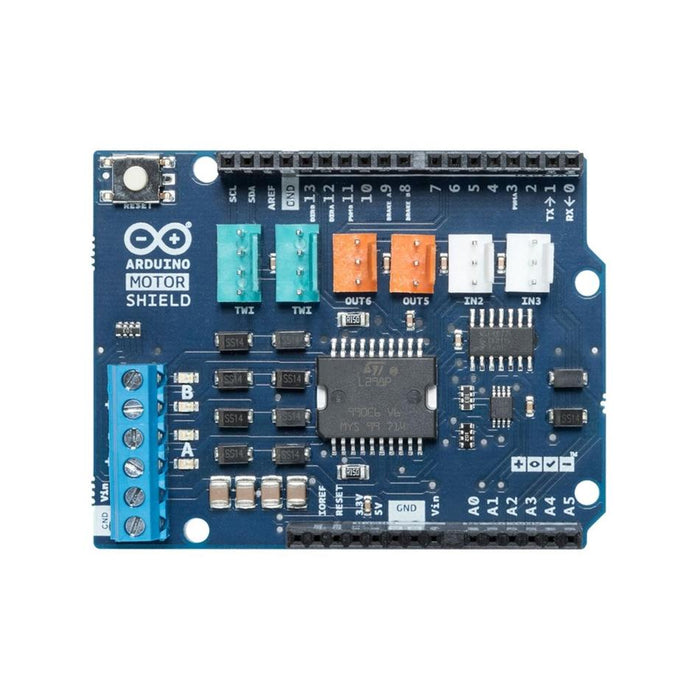

Arduino Motor Shield Rev3

$62.90 - $62.90
$62.90
$62.90
$62.90 - $62.90
$62.90
or 4 payments of $15.73 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • The Arduino Motor Shield is based on the L298 (datasheet), which is a dual full-bridge driver designed to drive inductive loads such as relays, solenoids, DC and stepping motors. It lets you drive two DC motors with your Arduino board, controlling the speed and direction of each one independently. You can also measure the motor current absorption of each motor, among other features. The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board.

  • Sensor IC L298P
    Length 68.6mm
    Width 53.4mm
    Packaged Dimensions 8.4cm(Length) x 6.2cm(Width) x 3.9cm(Height)
