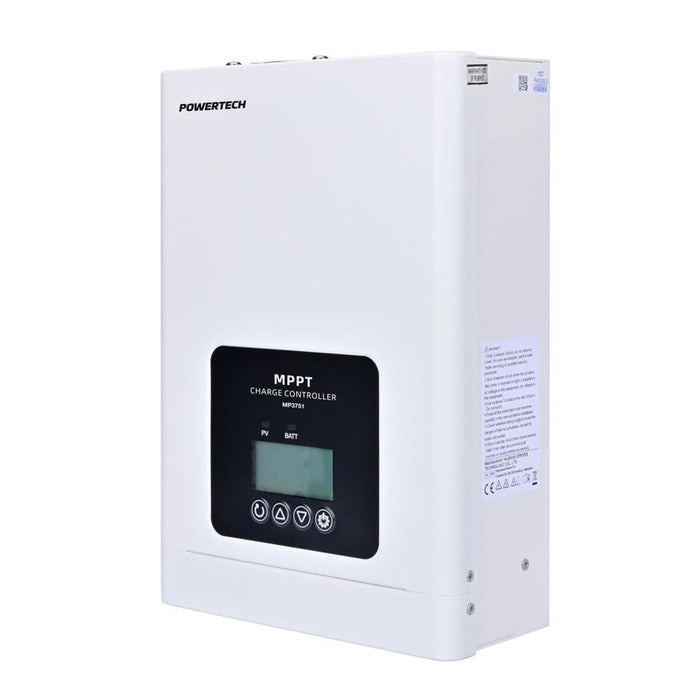

60A MPPT Solar Charge Controller for Lithium or SLA Batteries with Fan

This fan-cooled solar controller uses Maximum Power Point Tracking (MPPT) for maximum efficiency and charge rate.

It's able to charge lead acid (sealed, gel or flooded) or lithium battery banks between 12V to 48V suiting a huge range of applications.

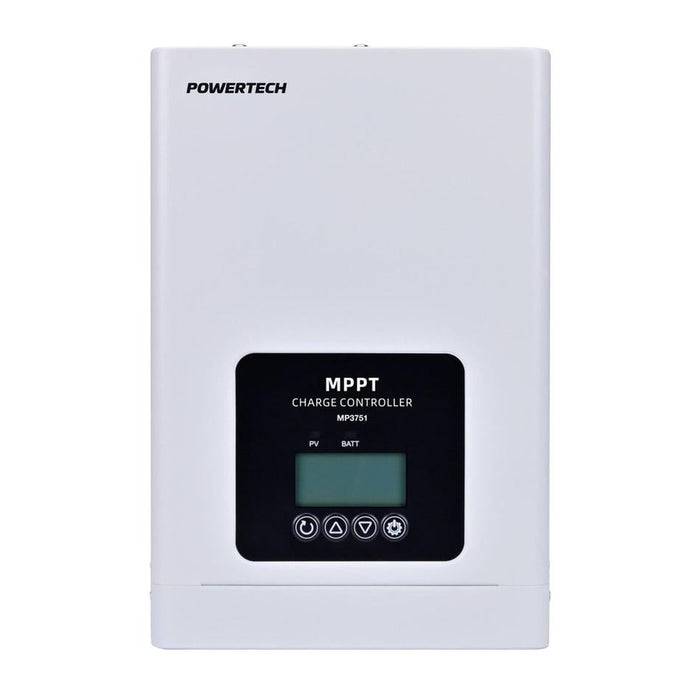

It features bulk, constant and float charge stages for rapid, efficient and safe battery charging, with feedback on charge status, current, voltages, etc. shown on the LCD screen.

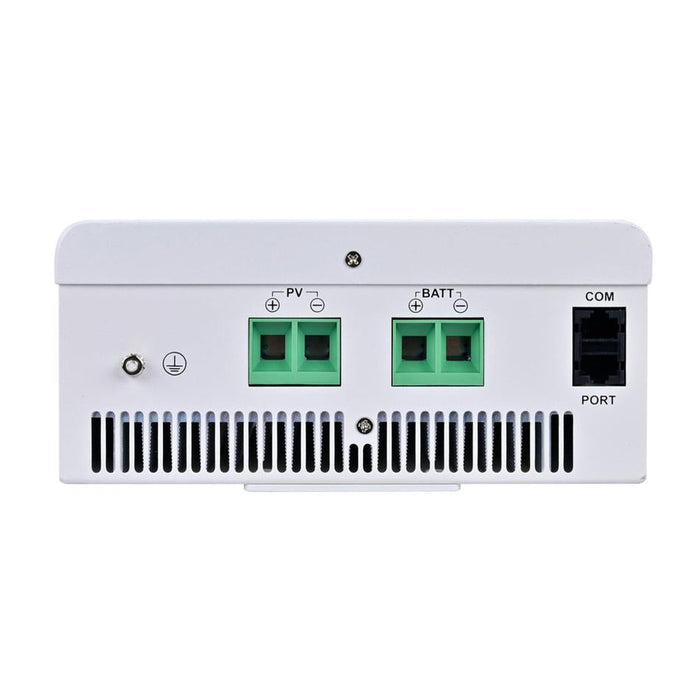

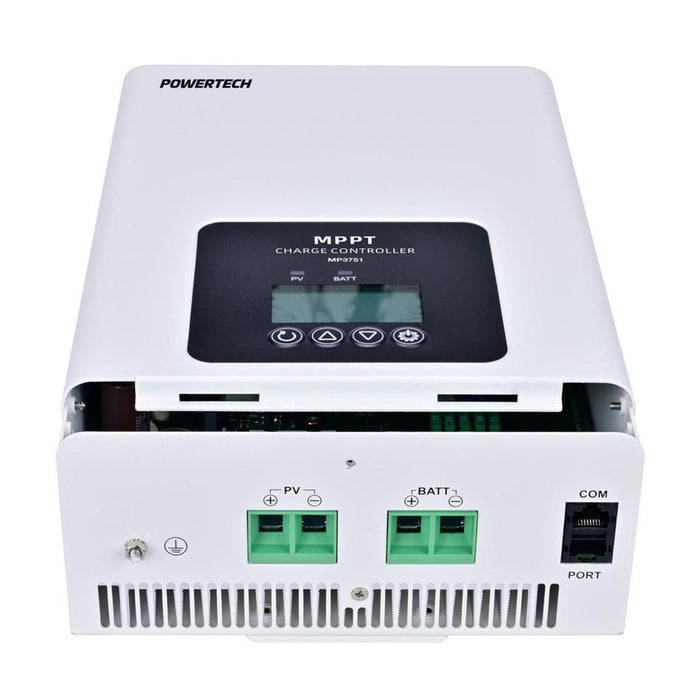

Built into a durable case for permanent installation with heavy duty screw terminals for cabling up to 8mm.

Note: Input voltage must be at lease 2V above the system voltage.

Features:

• Supports 12 -  48V systems
• Lithium LFP & NCM / AGM / GEL / Flooded battery support
• Active fan cooling
• Maximum current: 60A
• Maximum Open-Circuit voltage @ 25deg: 135v

Quick setup for Lithium batteries, such as SB2215:

1. Connect the battery
2. Press and hold the gear button till the display changes to BT
3. Press and hold the gear button until the battery type flashes
4. Press the down arrow button until the battery type reads LFP
5. Tap the gear to save
6. Tap the back button to exit
