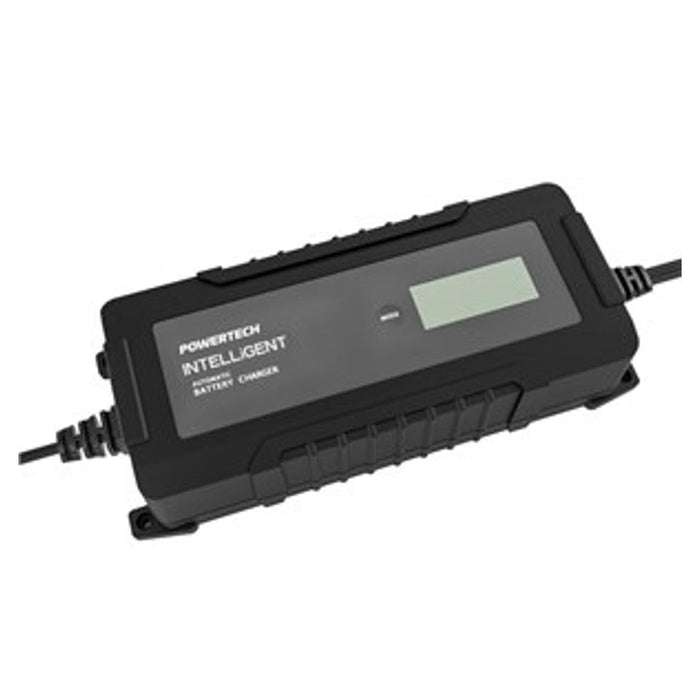

12/24VDC 10A 10-Step Intelligent Lead Acid and 12.8V Lithium Battery Charger

This intelligent battery charger suits 12V LiFePO4 and 12V/24V Lead Acid batteries.

It has a 10-step charging process to ensure your battery is kept in tip-top condition, safety features include overload, short circuit, reverse polarity, safety timer and wrong battery protection.

An easy to read LCD screen and single pushbutton control enables you to select the charging mode effortlessly or connect using the integrated Bluetooth technology which lets you conveniently check and control the charging status from your Smartphone.

The charger can also double as a DC power supply by providing 13.6V and up to 5A. Supplied with battery clips or eye terminal leads for quick connect/disconnect convenience. This unit is operated by AC mains power.

Features:

• Lithium Recovery Mode (wake lithium batteries in sleep/protection state)
• 12/24VDC
• 10 Step Charging
• Lead Acid and LiFePO4
• Bluetooth® Connectivity (BT Charger 2.0 - Android - Apple)
• 13.6V 5A DC Power Supply Mode

Specifications:

• Input: 220-240V~ 50Hz 2.0A
• Output:
  • 12v @ 10a
  • 24v @ 5a
  • 12.8v @ 10a
  • 13.6V@ 5A (Power supply)
• Battery capacity:
  • 12v 50ah-400ah
  • 24v 25ah-200ah
• Lithium (LiFePO4) 30A-200Ah
• Operating Temperature: 0ºC to +40ºC
• Dimensions (L x W x H) mm: 260x100x70mm
• Battery types: All types of 12V and 24V Lead-acid batteries (WET, GEL and AGM) and Lithium (LiFePO4)
• Protection Class: IP 65
• 1.8m mains cord
• 1.8m charge lead with quick-disconnect clip
• 40cm eyelet lead for permanent installations

Bluetooth setup: Open BT Charger 2.0 App, press +, choose Lb100pro from the list, password is 123456
