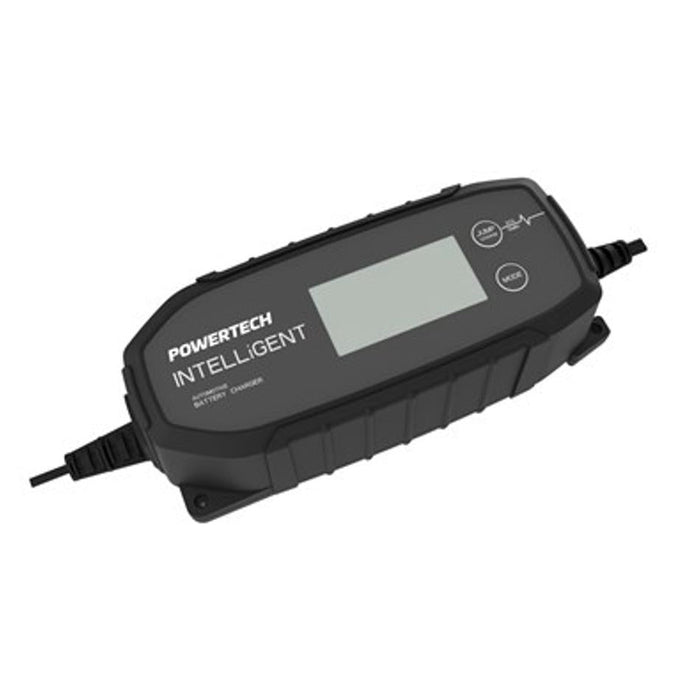

12/24VDC 26A 10-Step Intelligent Lead Acid and 12.8V Lithium Battery Charger

This intelligent high-current battery charger suits 12V or 24V Lead Acid, 16V AGM racing, 16V Lithium, or 12V LiFePO4 batteries between 30Ah to 200Ah.

It supports 10-step charging states to ensure your battery is in tip-top condition, safety features include overload, short circuit, reverse polarity, safety timer and wrong battery protection.

An LCD screen with dual button controls enables you to select the charging mode and see the charging status at a glance.

The charger can also double as a DC power supply by providing 13.6V up to 5A and a Jump charger function that can rapid charge at 20A for 5 mins max to get your battery back up and running again. Supplied with fused eyelet leads and heavy-duty battery clips. This unit is AC Mains powered.

Features:

• Lithium Recovery Mode (wake lithium batteries in sleep/protection state)
• 12v, 16v or 24vdc
• 10 Step Charging
• Lead Acid, AGM, Lithium and LiFePO4
• Bluetooth® Connectivity (BT Charger 2.0 - Android - Apple)
• 13.6V 5A DC Power Supply Mode
• Jump Charger Mode


Specifications:

• Input: 220-240V~ 50Hz 2.0A
• Output:
  • 12v @ 26a
  • 16v @ 19.5a
  • 24v @ 13a
  • 12.8v @ 26a
  • 13.6V @ 5A (Power supply)
• Battery capacity:
  • 12v 50ah-500ah
  • 16v 25ah-250ah
  • 24v 25ah-250ah
  • 12.8v 30ah-200ah (lifepo4)
  • 16v 24ah-250ah (lifepo4)
• Operating Temperature: 0ºC to +40ºC
• Dimensions (L x W x H) mm: 370*140*85mm
• Battery types: All types of 12V, 16V and 24V Lead-acid batteries (WET, GEL and AGM) and Lithium (LiFePO4)
• Protection Class: IP 65
• 1.8m mains cord
• 1.8m charge lead with quick-disconnect clip and 40A blade fuse
• 40cm 10mm-eyelet lead with 40A blade fuse for permanent installations

Bluetooth setup: Open BT Charger 2.0 App, press +, choose Lb260pro from the list, password is 123456
