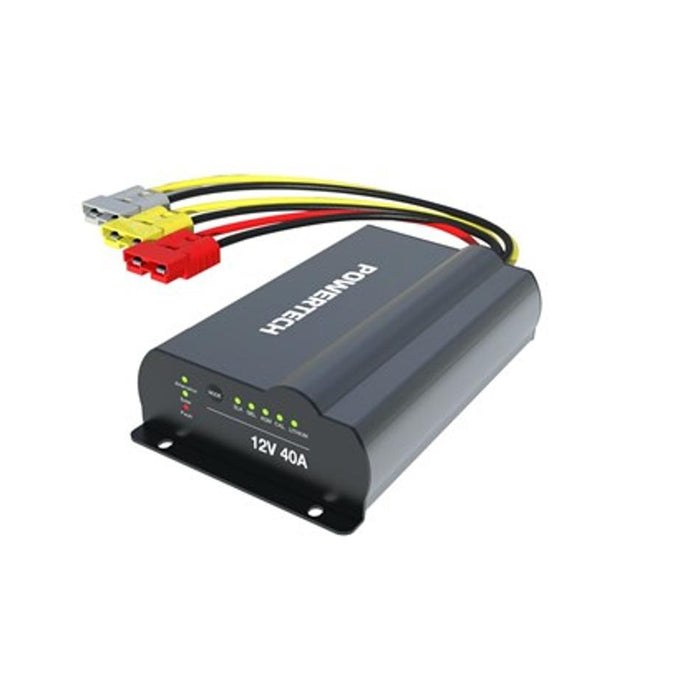

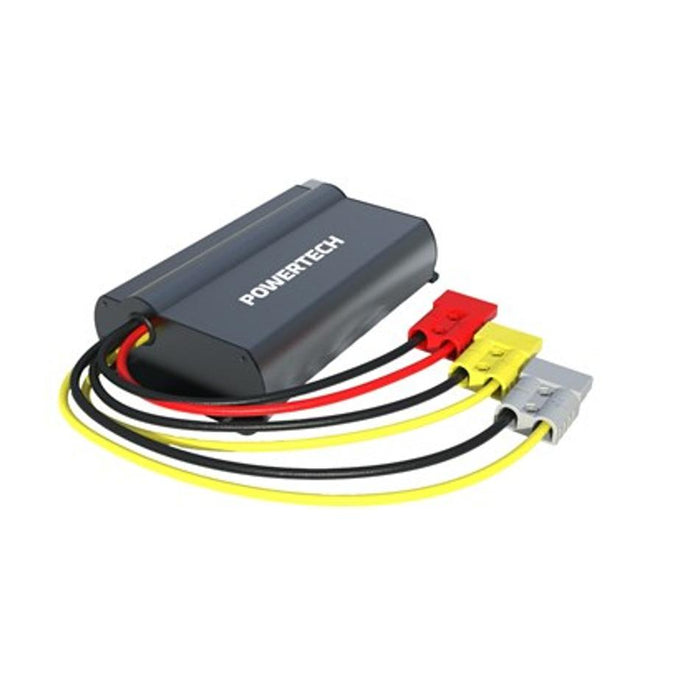

12V 40A DC-DC Charger

Perfect for automotive and solar applications.

Features:

• Universal DC input 12.0V-30.0V?0.2V For Solar/12.0V-15.0V?0.2V For car
• Compatible with Lead Acid, Li-ion, Gel and AGM batteries
• Fitted with colour-coded 50A high-current (Anderson-compatible) connectors
• High efficiency and high reliability
• Battery type select button and LEDs
• Protection :Short Circuit/Over-temperature/Reverse polarity
• E24/CE/RoHs approved
• IP65-rated enclosure - dust tight and watertight against light pressure water spray

Specifications

Input voltage:

• Solar charging: 12.0V-30.0V±0.2V (Max 600w using 12v panels, max 500w using 24v panels)
• Car alternator charging : 12.0V-15.8V±0.2V

Output voltage

• Gel: 14.2v±0.2v
• Cal: 15.2v±0.2v
• Std: 14.4v±0.2v
• Agm: 14.8v±0.2v
• Lifepo4: 14.6v±0.2v

Output current: 40a±0.5a

Charging efficiency: Full load ≥90%;Maximum efficiency reaches 97%

Plugs to suit those supplied with the charger: Grey: PT4425 / Red: PT4426 / Yellow: PT4543

Working mode
1.    Solar charging (default priority)
2.    Car generator charging
3.    Five speed battery type adjustment

Product size : 205x140x51mm (230mm long including mounting flanges)
Product weight : 1.7KG
