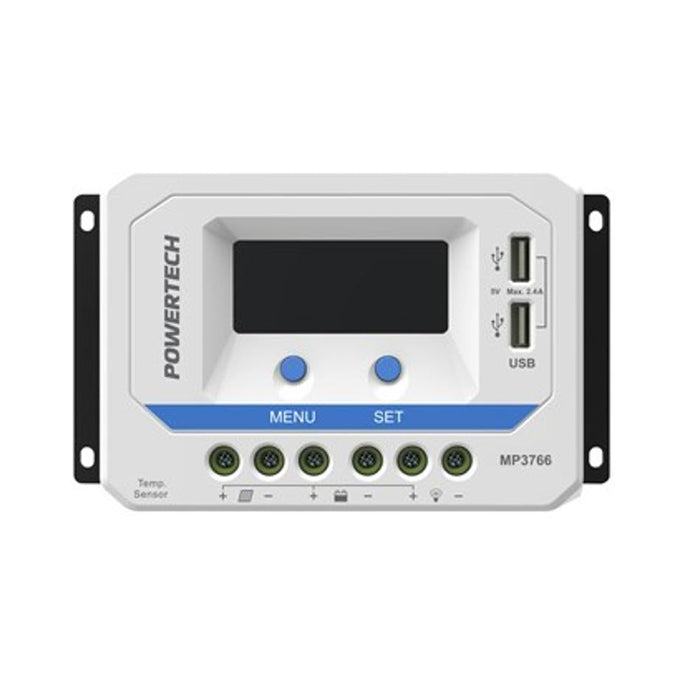

12V/24V 30A PWM Solar Charge Controller with LCD Display

This compact charger uses Pulse Width Modulation (PWM) to charge 12V or 24V lead acid (sealed, gel or flooded) batteries and supports 12V solar arrays up to 390W or 24VDC arrays up to 780W. It is recommended for battery capacities 30Ah and above and features three stage charging, including constant current, constant voltage and float charging. The backlit LCD screen displays real-time feedback on battery voltage, PV voltage, PV current and much more. Two USB ports are provided to charge your USB gadgets. The fanless design is built into a durable case for permanent installation with heavy-duty screw terminals for cabling up to 6AWG. Safety features include over-voltage, low-voltage protection, reverse connection, short-circuit, over-current, and over-temperature protection.

Features:
• PWM control technology
• Backlit LCD with real-time energy stats, operational and fault message
• Temperature sensor input for battery charging compensation
• Low-voltage disconnect/reconnect
• 3-stage charging
• Backlit LCD screen
• 2 programmable timers
• 2 x USB Ports

A compact 3 stage PWM solar charge controller with a huge 30A rating and LCD display to keep an eye on your batteries!
