SKU MP3768
by Electus

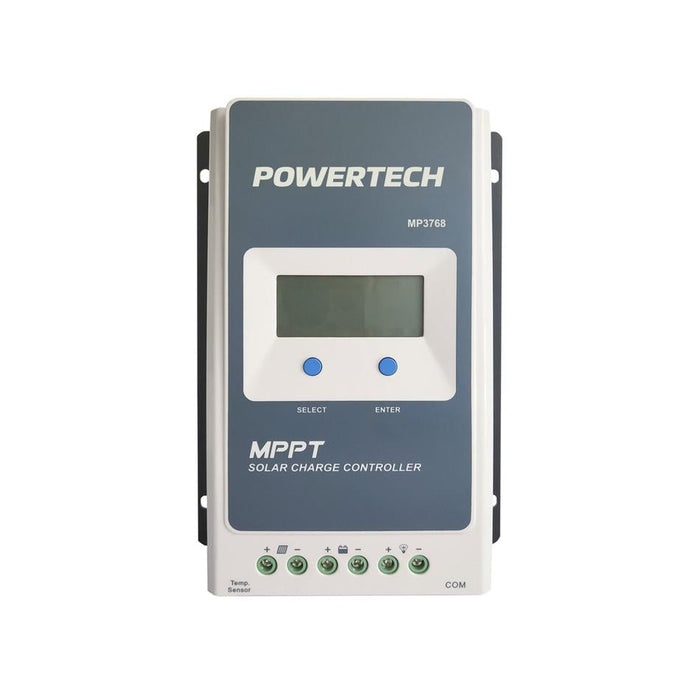

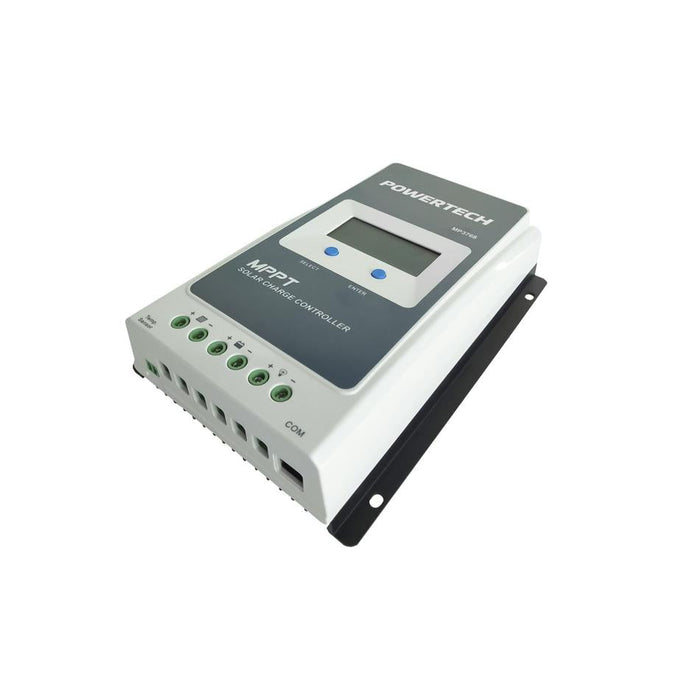

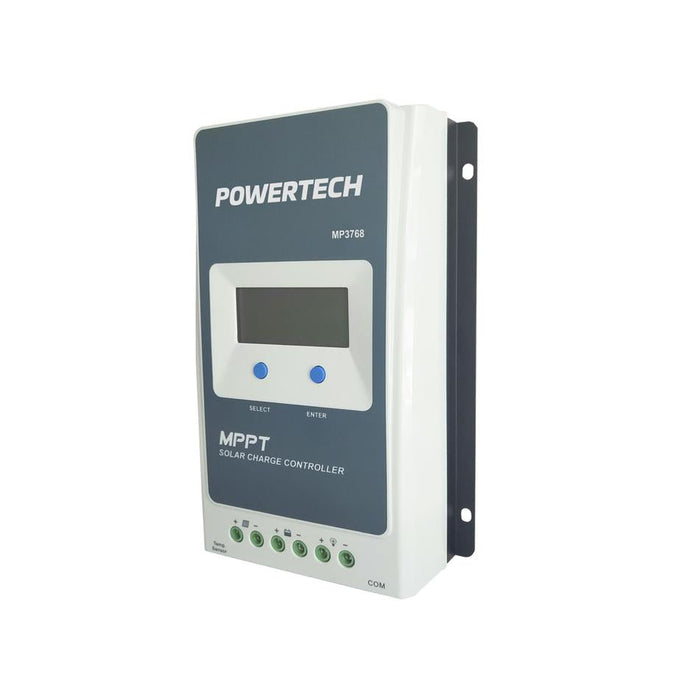

12V/24V 30A MPPT Solar Charge Controller with LCD Display for Lead Acid and Lithium Batteries

$299.00 - $299.00
$299.00
$299.00
$299.00 - $299.00
$299.00
or 4 payments of $74.75 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • What a feature packed Solar Controller! Using Maximum Power Point Tracking (MPPT) for maximum efficiency and charge rate, able to charge lead acid (sealed, gel or flooded) or lithium battery banks between 8V to 32V, and supporting 12V solar arrays up to 580W or 24VDC arrays up to 1170W, it suits a huge range of applications. It features bulk, constant and float charge stages for rapid, efficient and safe battery charging, with feedback on charge status, current, voltages, etc. shown on the LCD screen. Built into a durable case for permanent installation with heavy duty screw terminals for cabling up to 8AWG.

    Note: Maximum Charge output is limited to 30A if the Solar Panel input is greater than 390W on 12V or 780W on 24V systems.

    Features:
    - Advanced MPPT control technology
    - High tracking and conversion efficiency
    - Supports Sealed, Gel or flooded lead acid and Lithium batteries
    - 3-stage intelligent charging
    - Multiple load work modes
    - Extensive electronic protection
    - Backlit LCD display
    - RS485 communication
    - Common negative grounding

    Specifications:

    Compatible Battery Bank Voltages 12 / 24VDC Selectable
    Solar Input Voltage: 16 - 100VDC
    Maximum Solar Array Size: 580W/12VDC , 1170W / 24VDC
    Maximum Charge Output: 30A
    Maximum Load Current: 30A
    Dimensions: 228(H) x 164(W) x 55(D)mm, 1.26kg


    Battery support:

    - Sealed, gel or flooded Lead-acid (8~17V/12V; 18~32V/24V)
    - lifepo4 (12V/24V)
    - LiNiCoMnO2 (12V/24V)
    - lifepo4 (12V/24V)
    - LiNiCoMnO2 (12V/24V)

    RTS temperature sensor sold separately: MP3771
  • Charge Controller Technology Maximum Power Point Tracking (MPPT)
    Max PV Open Circuit Voltage 100.0V
    Max Charging Current 30.0A
    Max Solar Panel Array 390.0W,780.0W
    Length 228.0mm
    Width 164.0mm
    Height 55.0mm
    Weight 1.0g
    Packaged Dimensions 25.5cm(Length) x 18.6cm(Width) x 7.7cm(Height)
