SKU MP3772
by Electus

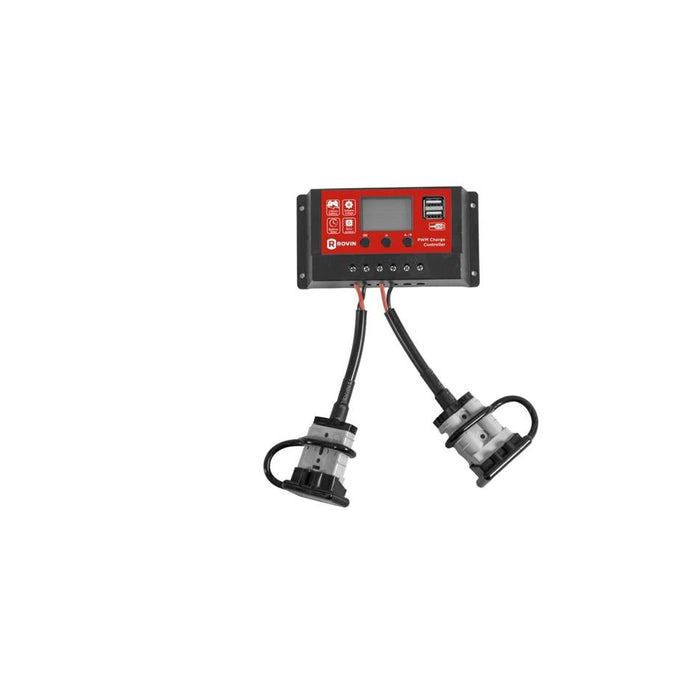

PWM 20A Solar Charge Controller with High-current Leads

$71.90 - $71.90
$71.90
$71.90
$71.90 - $71.90
$71.90
or 4 payments of $17.98 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • This compact charger uses Pulse Width Modulation (PWM) to charge 12V or 24V lead acid (sealed, gel or flooded) and Lithium batteries, and supports 12V solar arrays up to 260W or 24VDC arrays up to 520W. It features three stage charging, including constant current, constant voltage and float charging. Two USB ports are provided to charge your USB gadgets. Safety features include over-voltage, low-voltage protection, reverse connection, short-circuit, over-current, and over-temperature protection.

    Includes pre-wired high current connectors for use with our range of Rovin solar panels & accessories. For connecting panels equipped with Solar PV MC4 connectors, you can use the adapter PS5122.

    Features:

    • Supports GEL, AGM, flooded & Lithium batteries
    • PWM control technology
    • 3-stage charging

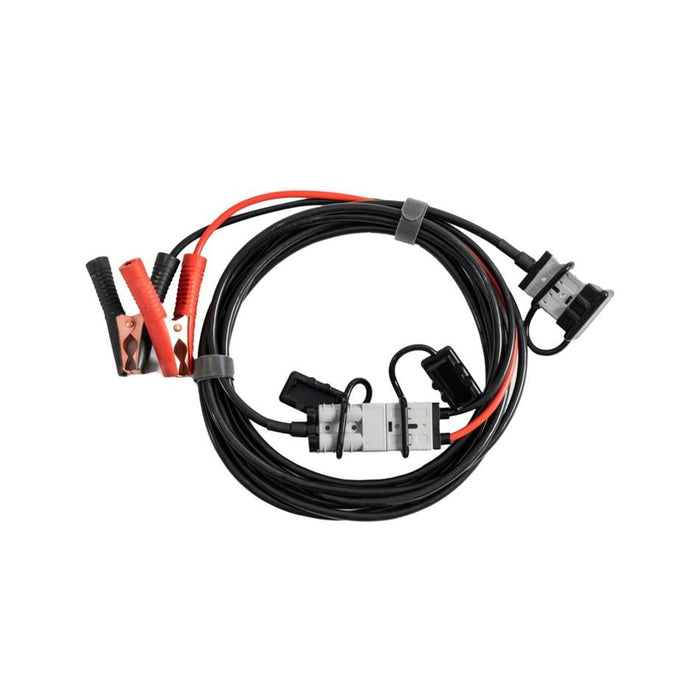

    • 4.5m High-Current 50A connector extension lead
    • 50cm High-Current 50A connector lead with battery clamps
    • Dual USB Ports
    • Max PV Input: 50VDC

  • Charge Controller Technology Pulse Width Modulated (PWM)
    Max Charging Current 20.0A
    Max Load Current 20.0A
    DC current rating 20.0A
    Length 104.0mm
    Width 70.0mm
    Height 25.0mm
    Packaged Dimensions 28.5cm(Length) x 23.7cm(Width) x 7.5cm(Height)
    Additional Information For more information on our shipping policy follow this link and for our returns policy click here.
  • Manual.pdf
"
"
