SKU SZ2026
by Electus

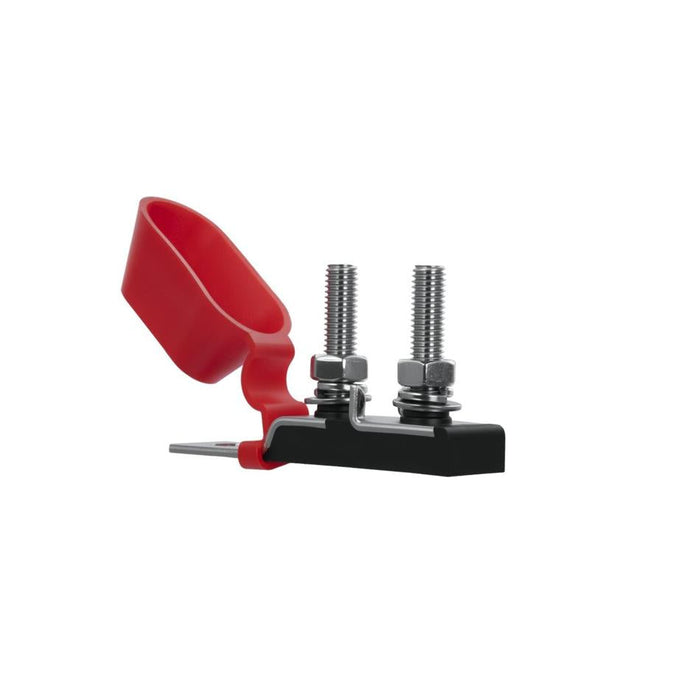

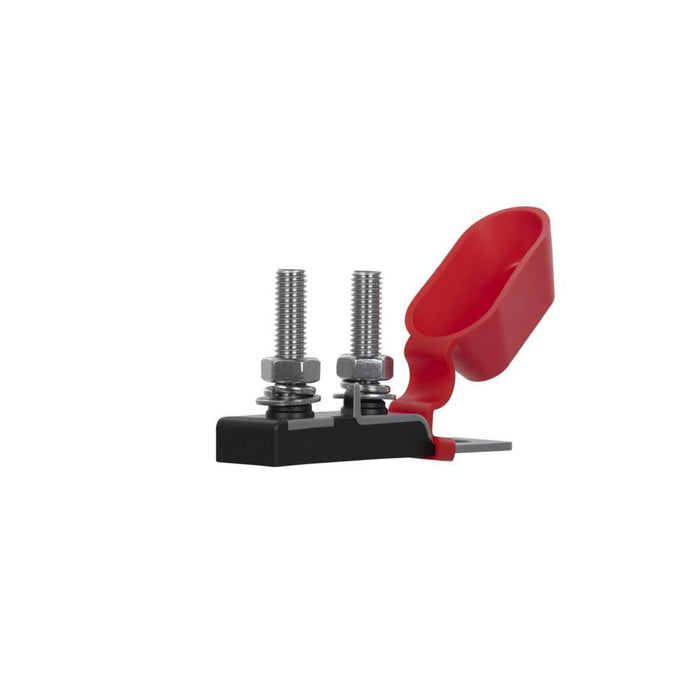

MRBF Dual Terminal Fuse Block

$35.90 - $35.90
$35.90
$35.90
$35.90 - $35.90
$35.90
or 4 payments of $8.98 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • These marine rated battery fuse holders are designed to protect a low voltage electrical system from short circuits or overloads.

    It mounts directly to the battery terminal, providing a compact and secure way to fuse the main power connection.

    Recommended for use in large systems or in use with lithium batteries for an additional layer of short circuit protection.

    • Available in single (SZ2024) & dual output (SZ2026) configurations.
    • Requires MRBF fuse - sold separately (SF2050 to SF2059)

    Features:

    • Suitable for systems up to 48VDC
    • Rated up to 300A - M8
    • Secure fuse protection in high current installations
  • Fuse Holder Style Mrbf
    Length 88.5mm
    Width 46.0mm
    Height 20.0mm
    Weight 0.07kg
    Packaged Dimensions 9.5cm(Length) x 9.0cm(Width) x 3.0cm(Height)
