SKU QC1904
by Electus

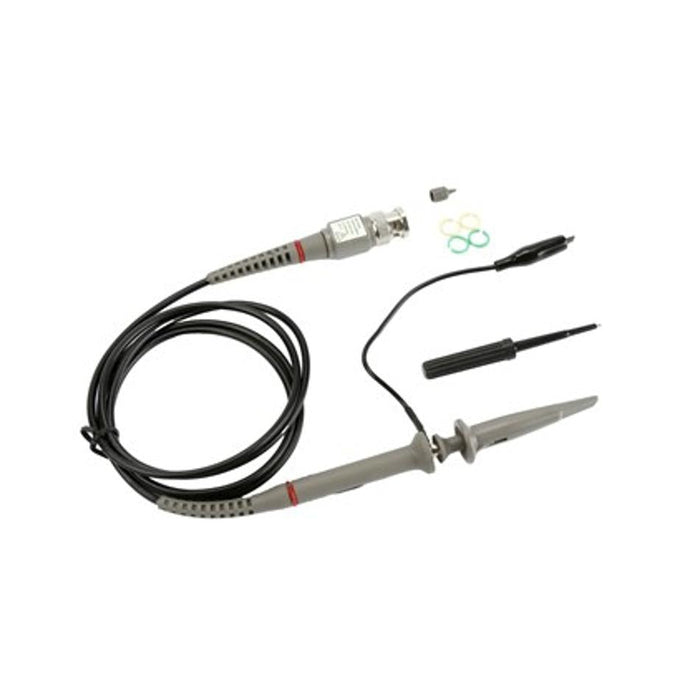

DSO Oscilloscope Probe Cable Set 100MHz

$74.90 - $74.90
$74.90
$74.90
$74.90 - $74.90
$74.90

or payment options selectable at checkout:

laybuy-logo-icon 6x $12.48

afterpay-logo-icon 4x $18.72

zip-logo-icon 4x $18.72

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $3)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • QC1904 – Passive Oscilloscope Probe

    The QC1904 is a passive probe designed to work with any oscilloscope featuring a standard BNC input for measurement of intermediate and low frequency signals.

    This quality probe set consists of a 1.2m quality cord terminated at one end with a moulded-on stainless steel BNC connector and 1 x, 10x attenuator probe at the other end. An earthing lead 120mm long with alligator clip to connect to the probe at the other end is provided.

    Key Features:

    1. Input Voltage: x1:<200V DC +Peak AC ; x10: <600V DC +Peak AC

    2. Bandwidth: x1 DC-6MHz, x10 DC to 100MHz

    3. Attenuation ratio: 1X / 10X

    4. Input impedance: x1: 85pF-115pF; x10:18.5pF-22.5pF

    5. 120cm total length

    Note: Not to be used for EHT (Extra High Tension) voltage.

    DSO Oscilloscope Probe Cable Set

  • Contains Button Cell false
    Length 1mm
    Packaged Volume 0.53l
    Packaged Weight 0.07kg
    Packaged Length 20.8cm
    Packaged Width 13.3cm
    Packaged Height 1.9cm
    Availability Stocked item
    Additional Information For more information on our shipping policy follow this link and for our returns policy click here.
  • Download Datasheet.pdf
"
"
