SKU RE6241
by Electus

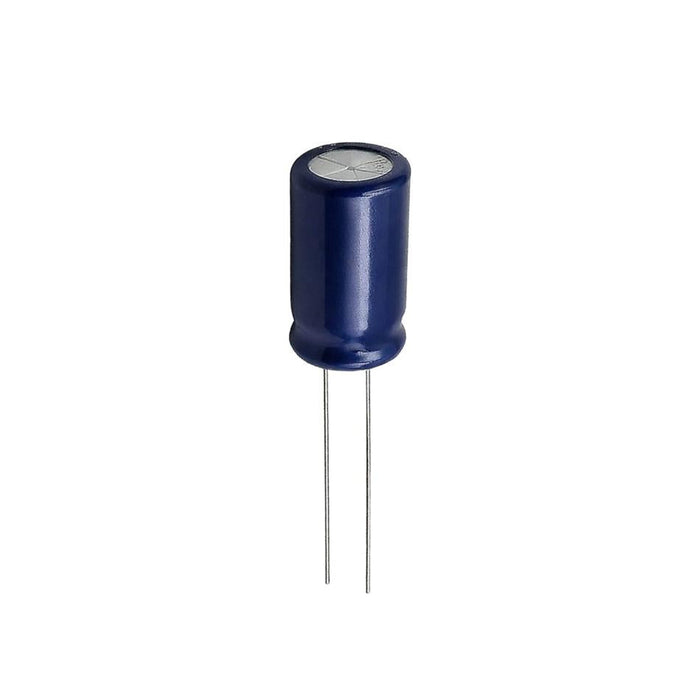

2200uF 50VDC Electrolytic RB Capacitor

$3.80 - $3.80
$3.80
$3.80
$3.80 - $3.80
$3.80
or 4 payments of $0.95 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • An electrolytic capacitor uses an electrolyte (a liquid or gel containing a high concentration of ions) to achieve a large capacitance than the other capacitor types. These electrolytic capacitors are polarized, meaning that the voltage on the positive terminal must always be greater than the voltage on the negative terminal. They are commonly used as filters in devices in various power supplies to reduce the voltage ripple as well as input and output smoothing as an LPF.

    Features:

    Ripple Current mA: 1230
    Mounting: RB - PC Mount

  • Capacitor type Electrolytic
    Component Type Electrolytic Capacitor
    Pack Quantity 1.0pc
    Pitch 7.5mm
    Passive mount type Through Hole
    Passive connector type Solder Legs
    Component package Radial
    Passive number of legs 2.0 count
    Passive marking code Printed
    Operating Temperature 105.0°C-105.0°C-105.0°C
    DC Voltage 50.0V
    Item capacitance 2200.0µF
    Height 35.0mm
    Diameter 16.0mm
    Packaged Dimensions 5.5cm(Length) x 1.6cm(Width) x 1.6cm(Height)
