SKU RE6320
by Electus

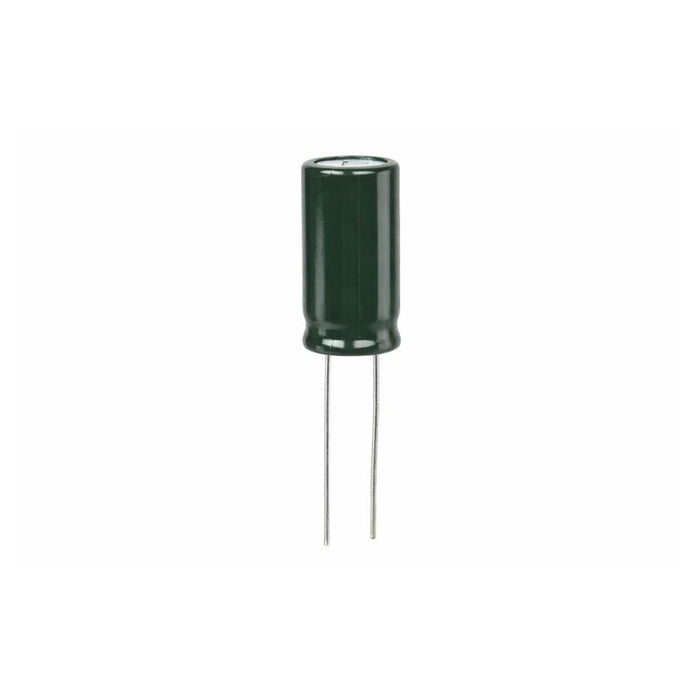

4700uF 16VDC Low ESR Electrolytic Capacitor

$3.50 - $3.50
$3.50
$3.50
$3.50 - $3.50
$3.50
or 4 payments of $0.88 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • An electrolytic capacitor uses an electrolyte (a liquid or gel containing a high concentration of ions) to achieve a large capacitance than the other capacitor types. These electrolytic capacitors are polarized, meaning that the voltage on the positive terminal must always be greater than the voltage on the negative terminal. They are commonly used as filters in devices in various power supplies to reduce the voltage ripple as well as input and output smoothing as an LPF.

    Features:

    - Stable, low impedance characteristics
    - Ripple Current mA rms: 3029
    - Ripple current measured at 105°C 100kHz
    - Impedance: 0.022
    - Impedance: max at 20°C 100kHz
    - Low D.C. leakage current
    - Extended life - high reliability withstanding 2,000 to 4,000 hours load life at 105°C
    - Radial leads on standard pitch

  • Capacitor type Electrolytic Low ESR
    Polarised Capacitor true
    Component Type Electrolytic Capacitor
    Pack Quantity 1.0pc
    Passive mount type Through Hole
    Passive connector type Solder Legs
    Component package Radial
    Passive number of legs 2.0 count
    Passive marking code Printed
    Operating Temperature 105.0°C
    DC Voltage 16.0V
    Item capacitance 4700.0µF
    Height 30.0mm
    Diameter 16.0mm
    Packaged Dimensions 6.0cm(Length) x 1.5cm(Width) x 1.5cm(Height)
