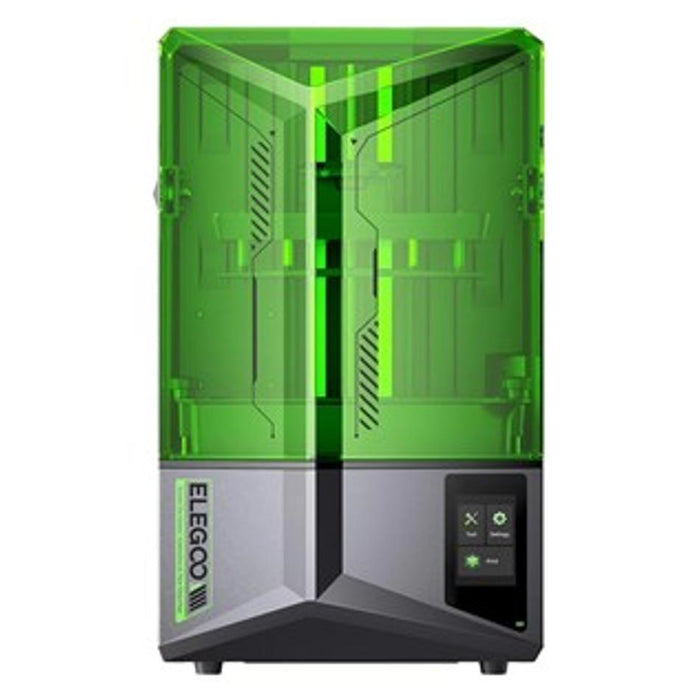

12K Mono LCD For Excellent Details Reproduction: With a 10-inch 12K mono LCD, the Saturn 4 boasts an incredible resolution of 11520x5120 and an XY resolution of 19x24μm, presenting you exquisite models with stunning clarity and precision. The LCD screen is equipped with a durable and anti-scratch protector made of 9h tempered glass, effectively protecting the screen from scratches and damage. COB & Fresnel Collimating Lens For Precise Surface: When the COB light source emits light at 405nm with the combination of a Fresnel collimating lens, it can achieve an ultra-low astigmatism coefficient of 0.5%, an exceptional field uniformity of 92%, and a precise angle deviation control below 5° on the forming surface, realising accurate and even printing results with delicate finishing and intricate details.
Automatic Levelling, Print Right Out Of The Box: With its intelligent self-check and auto-levelling features, the Saturn 4 delivers a worry-free experience. Unbox, power on, and print – the printing experience has never been this effortless. One-Click Self-Check: With one single click, the Saturn 4 will perform a quick self-check to ensure all its components are working properly before your printing starts. One-Click Automatic Levelling: Thanks to its intelligent mechanical sensor, levelling the build plate has become a breeze every time once you click the button, saving your time and efforts. Smart Mechanical Sensor, Enjoy Worry-Free Printing: Equipped with a mechanical sensor, the Saturn 4 supports residue detection to prevent damage to the LCD screen, as well as resin shortage and levelling failure alarm to further enhance the safety and reliability during printing.
• 10" 12k mono lcd
• COB + Fresnel Collimating Lens
• Auto Levelling & Intelligent Mechanical Sensor
• User-Friendly Structure & Advanced Cooling System
The Saturn 4 offers an advanced automatic leveling function with a simple click, allowing all skill levels to dive straight into the creative process. Say goodbye to tedious calibrations - simply unbox, power on, and print.
| Maximum print size |
218.88 x 122.88 x 220mm |
| Maximum printing speed |
70mm/h |
| Layer Thickness |
0.01mm, 0.01mm |
| Touchscreen Screen Size |
3.5 inch touchscreen |
| XY axis Resolution |
19mm |
| Z Axis Resolution |
0.02mm |
| Layer Resolution |
0.02mmmm |
| 3D Printer Type |
Resin |
| Frame Type |
Closed |
| Light Source |
COB Light Source + Fresnel Collimating Lens (wavelength 405nm) |
| Release Film |
Pfa |
| Print Resolution |
19×24μm |
| Contains Button Cell |
false |
| Length |
327.4mm |
| Width |
329.2mm |
| Height |
548mm |
| Diameter |
329.2mm |
| Weight |
13.5kg |
| Packaged Volume |
107.08l |
| Packaged Weight |
16.73kg |
| Packaged Length |
63.7cm |
| Packaged Width |
41cm |
| Packaged Height |
41cm |
| Length |
218.88mm |
| Width |
122.88mm |
| Height |
220mm |
| Additional Information |
