HDMI to USB3.0 + HDMI Loop Out Video Capture Card Supports 4K@60Hz with Mic and 3.5mm Audio

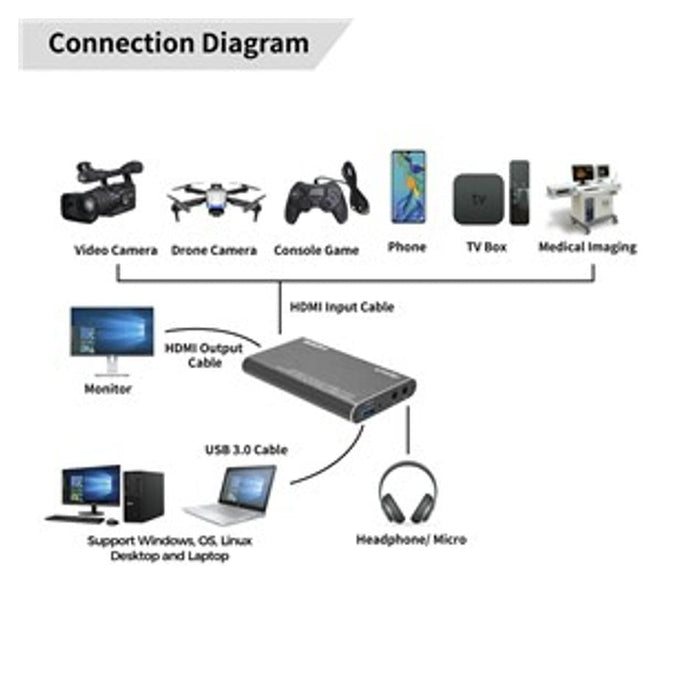

This video capture adapter enables you to live stream and record on a computer from a webcam, gaming console, video recorder or media player. Simply plug it into an available USB port on your computer and connect your media device to the HDMI input via a HDMI cable. A second HDMI output port allows you to view the video on another display.

Use the free and open-source OBS () software to quickly and easily stream from a Windows, Mac or Linux machine to online platforms including YouTube, Twitch and Facebook. Windows Camera is natively supported, so you can use this to easily monitor and record HDMI sources such as surveillance DVRs/NVRs on PCs.

The HDMI input supports resolutions up to 4K 30fps, HDMI output to PC is up to 1080p, and no external power is required. Device driver is supplied by your operating system.

Features:

• Windows, Mac and Linux compatible
• Hdmi-in, hdmi-out, mic in 3.5mm, audio out 3.5mm, usb type-a socket
• Dimensions: 100(L) x 60(W) x 13(D)mm

Inputs: 1 x HDMI, 1 x 3.5mm microphone
Outputs: 1 x HDMI loop-out, 1 x USB 3.0, 1 x 3.5mm stereo
Supports HDMI input up to 4K@30Hz or 4K@60Hz (4:2:0) for video capture
Supports USB 3.0 output up to 1080p
Supports HDMI loop-out
Compatible with UVC video capture and YUV 4:2:0 video output
Compatible with UAC HDMI audio capture and 48kHz PCM audio output
Compatible with Windows, Linux, and macOS
Compatible with USB 3.0 and USB 2.0


In the box:

• Capture adapter
• 50cm USB3.0 Type-A to Type-A cable
• Manual

Use this video capture to enjoy live streaming and recording
