SKU ZD0070_E
by Folders
Green 2mm led 2200mcd tower type diffused
Original price
$1.05
-
Original price
$1.05
Original price
$1.05
$1.05
$1.05
-
$1.05
Current price
$1.05
or payment options selectable at checkout:
6x
$0.17
4x
$0.26
4x
$0.26
Found a lower price? We'll match it
$5.99 Nationwide (+$3 rural)
AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)
LED

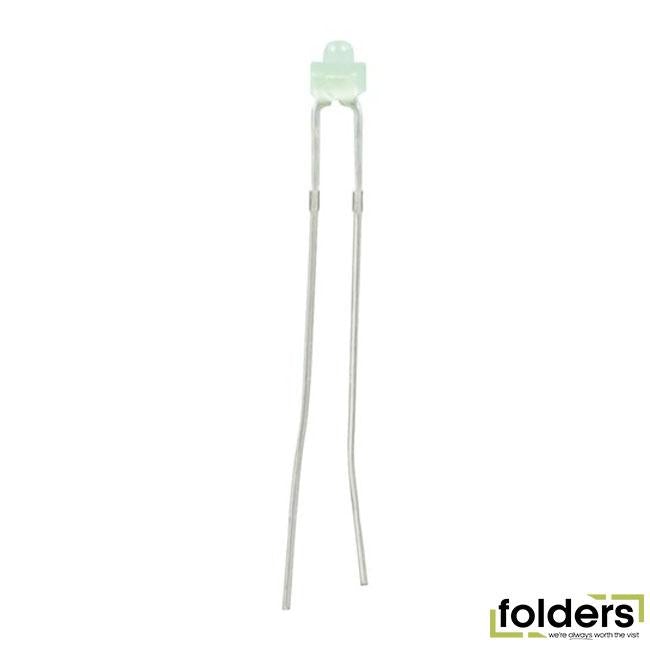

A green through-hole diffused tower type LED that fits into a 1.8mm hole in a panel or enclosure.
• 5 colours to choose from
| Diameter : 2.0mm |
| LED Type : 2mm Tower Type LED |
| Illumination Type : Single Colour |
| Light Colour : Green |
| Light Wavelength : 520.0nm, 525.0nm |
| Lens Type : Diffused |
| Viewing Angle : 60.0° |
| Intensity : 2200.0mcd, 2200.0mcd |
| Vf (typ) - Typical Forward Voltage : 3.2V |
| If (typ) - Typical Forward Current : 20.0mA |
| Resistor for 5VDC : 91.0Ω |
| Resistor for 9VDC : 270.0Ω |
| Resistor for 12VDC : 470.0Ω |
