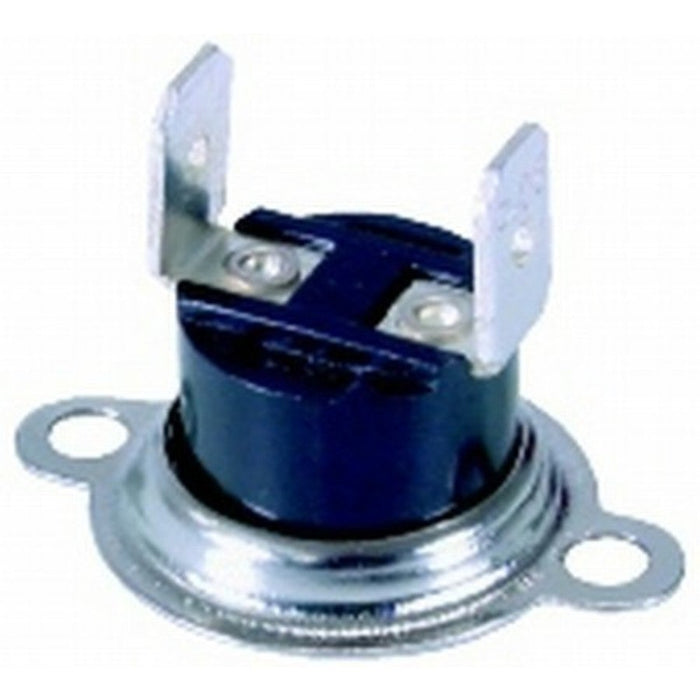

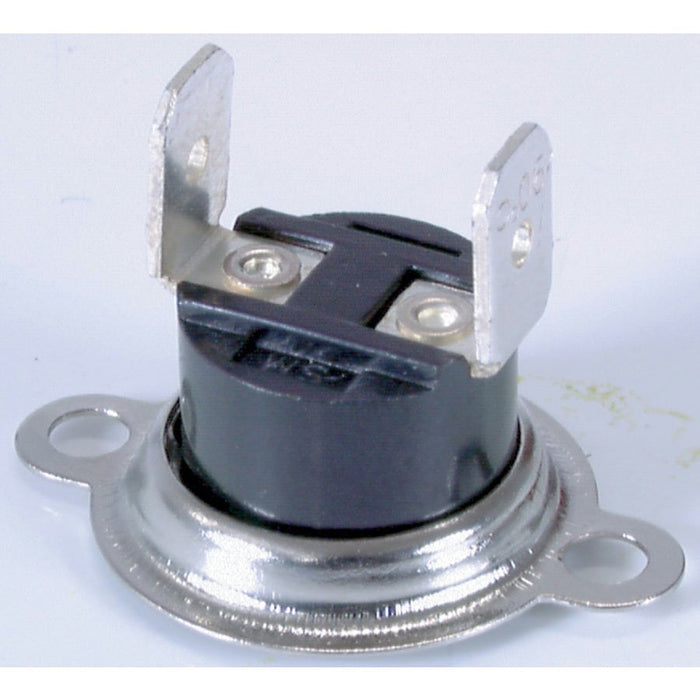

60°C Thermal Circuit Breaker/Switch - Folders
SKU ST3821
by Folders

Normally-Closed Automatic-Reset Thermal Circuit Breaker

$7.90 - $7.90
$7.90
$7.90
$7.90 - $7.90
$7.90
Pay in 4 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • Normally-closed automatic-reset thermal circuit breakers open when their trip temperature is reached, then reset as the monitored surface cools. Select the required trip temperature.

  • Contact arrangement SPST, normally closed
    Reset method Automatic
    Housing Phenolic

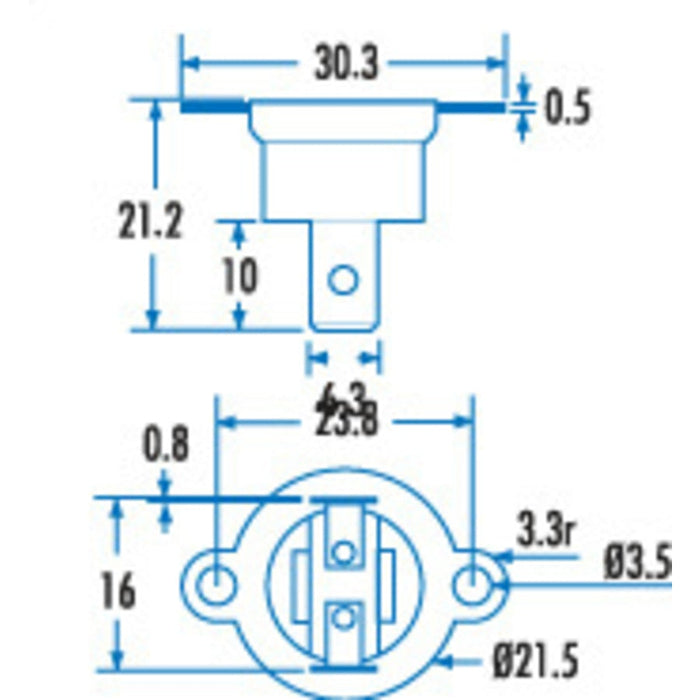

    Diameter 30.3mm
    Height 21.2mm
    Contact endurance 32VDC 100mA; 125VAC 10A; 250VAC 6A
    Operating tolerance ±5°C at 32VDC; ±8°C at 125VAC; ±10°C at 250VAC

    Available options

    Supplier code Trip temperature
    ST3821 60°C
    ST3823 70°C
    ST3825 90°C
    ST3826 100°C

    Variant specifications

    Supplier code Trip temperature Reset temperature
    ST3821 60°C 40°C
    ST3823 70°C 58°C
    ST3825 90°C 75°C
    ST3826 100°C 85°C
