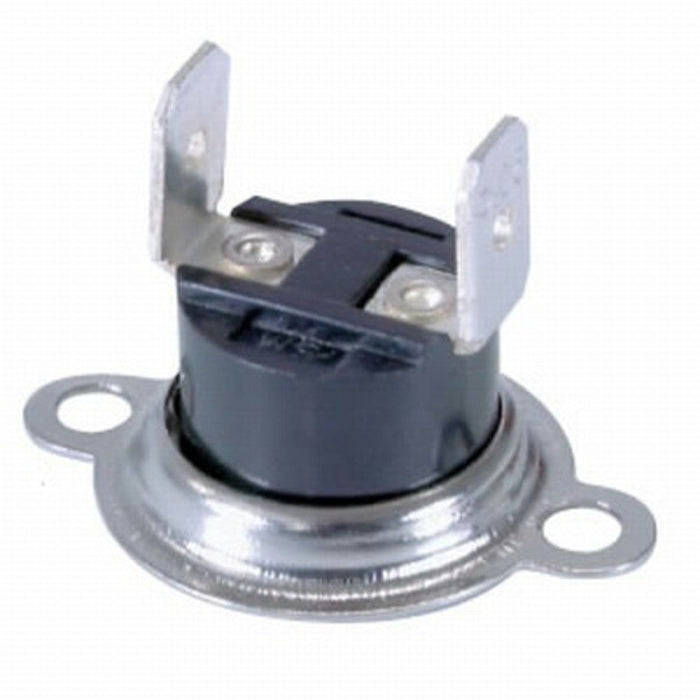

Normally Open Thermostat Switch - 50 Degrees - Folders
SKU ST3831
by Folders

Normally Open Thermostat Switch

$7.90 - $7.90
$7.90
$7.90
$7.90 - $7.90
$7.90
Pay in 4 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • Normally open thermal switches in a phenolic housing, with automatic reset. Mount to a heatsink or other metal surface for applications such as fan control.

  • Form factor 21.2mm high × 30.3mm diameter
    Thermal reset Automatic
    Contact state Normally open
    Operating tolerance ±5°C at 32VDC; ±8°C at 125VAC; ±10°C at 250VAC
    Contact endurance 32VDC 100mA; 125VAC 10A; 250VAC 6A
    Reset differential 10°C–50°C

    Available options

    Supplier code Trip temperature
    ST3831 50°C
    ST3833 70°C
    ST3836 100°C
