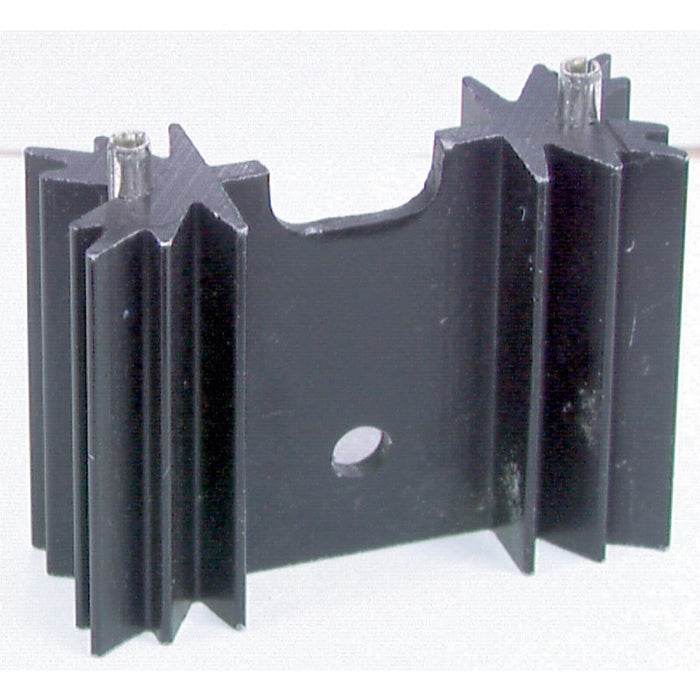

PC Mount TO-3P Heatsink - 25mm High - Folders
SKU HH8520
by Folders

PCB Mount TO-3P Heatsink

$2.10 - $3.40
$2.10
$2.10
$2.10 - $3.40
$2.10
Pay in 4 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • PCB-mount heatsinks for TO-3P flat-pack devices, including TO-220. Two PCB pins stabilise the heatsink and allow it to be soldered to PCB pads. Select the height needed for the thermal requirement and available clearance.

  • Mounting method PCB
    Device compatibility TO-3P flat pack, including TO-220
    PCB pins 2
    Fins 2

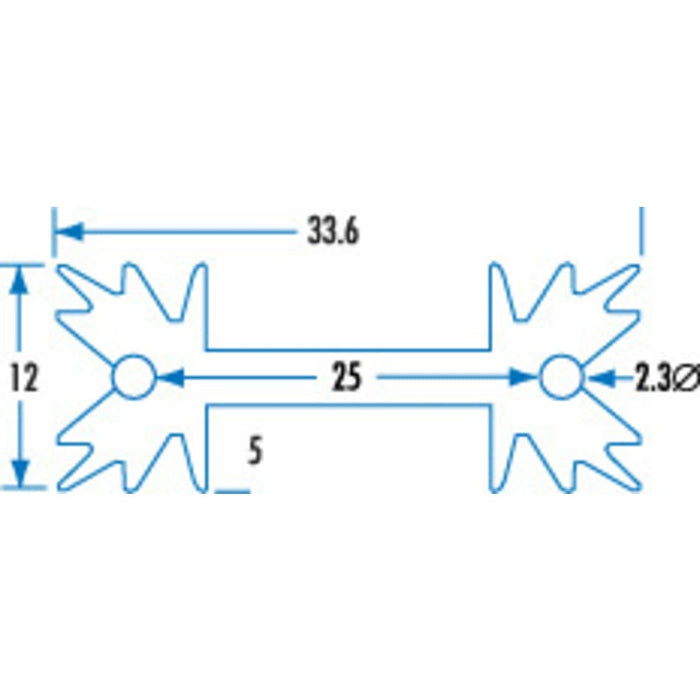

    Width 33.6mm
    Depth 12mm
    Component mount area height 12mm
    Mounting-hole diameter 2.3mm

    Available options

    Supplier code Height
    HH8520 25mm

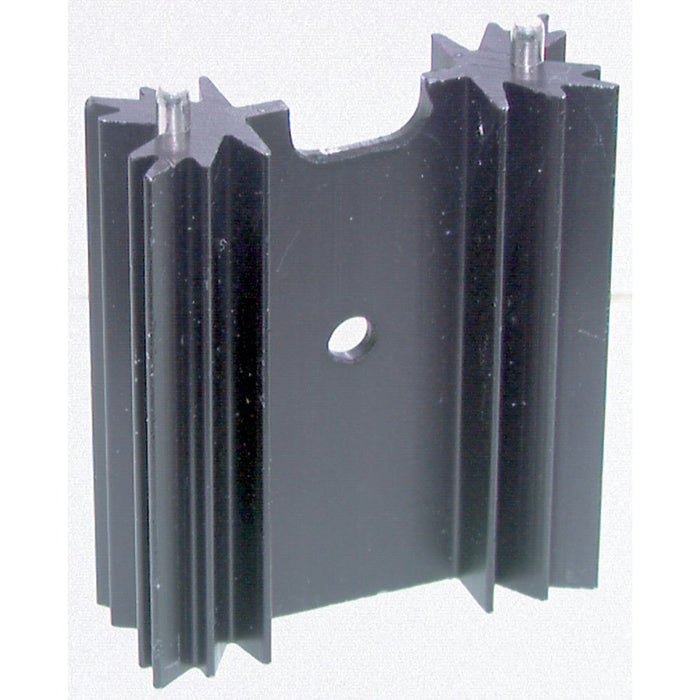

    HH8522 40mm

    Variant specifications

    Supplier code Height Thermal resistance
    HH8520 25mm 17°C/W
    HH8522 40mm 11°C/W
