SKU XC5104
by Electus

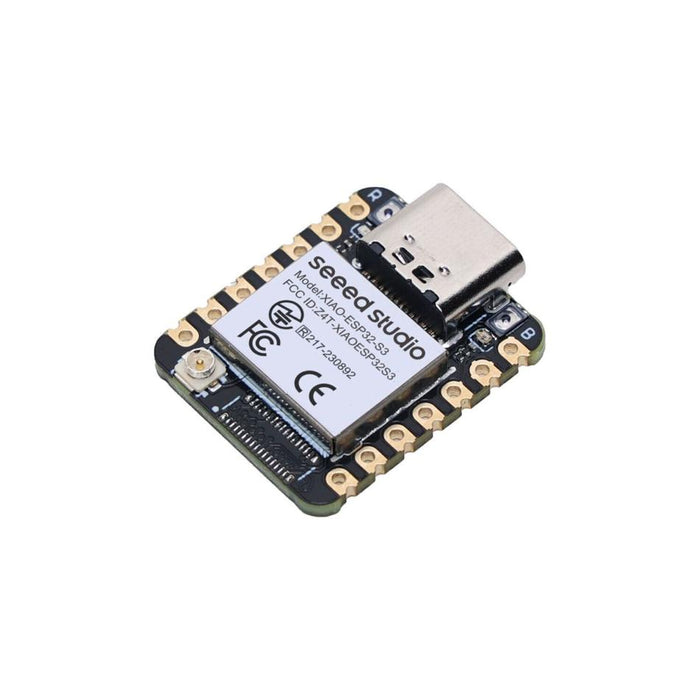

Seeed Studio ESP32-S3 Board

$29.90 - $29.90
$29.90
$29.90
$29.90 - $29.90
$29.90
or 4 payments of $7.48 with Afterpay

Found a lower price? Give us a call

delivery-truck-icon $8.99 Nationwide (Rural Delivery add $4)

available-green-tick-icon AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)

  • Seeed Studio XIAO ESP32S3 leverages a 240MHz Xtensa 32-bit LX7 dual-core processor, supporting both WiFi and BLE 5.0 wireless connectivities, a 2.4GHz Rod antenna, allowing for deep sleep mode with power consumption as low as 14μA while supporting lithium battery charging management.

    Ideal for the Internet of Things, Smart Homes, Wireless wearable devices, Robotics, etc.

    • Powerful MCU Board: Incorporates the ESP32-S3 32-bit, dual-core, Xtensa processor running at up to 240MHz, mounted multiple development ports, Arduino / MicroPython supported
    • Outstanding RF performance: Supports 2.4GHz WiFi and BLE 5.0 dual wireless communication, support 100m+ remote communication when connected with U.FL antenna
    • Elaborate Power Design: Lithium battery charge management capability, offers 4 power consumption models which allows for deep sleep mode with power consumption as low as 14μA
    • Thumb-sized Compact Design: 21 x 17.8mm, adopting the classic form factor of XIAO, suitable for space limited projects like wearable devices
    • Perfect for Production: Breadboard-friendly & SMD design, no components on the back

    Info on setup here.

    In the box:

    • ESP32 board
    • Antenna
    • 2x 7-pin Headers
  • Length 21.0mm
    Width 17.8mm
    Height 5.0mm
    Diameter 17.8mm
    Weight 10.0g
    Packaged Dimensions 4.1cm(Length) x 4.0cm(Width) x 2.6cm(Height)
