SKU SP0614
by Folders

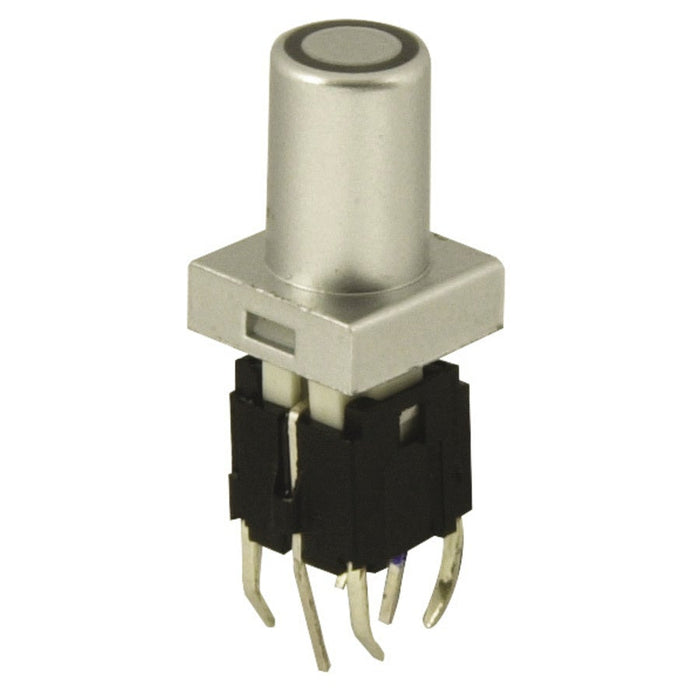

SPST PCB Mount Vertical & Horizontal with Blue LED
Original price
$4.50
-
Original price
$4.50
Original price
$4.50
$4.50
$4.50
-
$4.50
Current price
$4.50
or payment options selectable at checkout:
6x
$0.75
4x
$1.12
4x
$1.12
Found a lower price? We'll match it
$5.99 Nationwide (+$3 rural)
AVAILABLE
Nationwide delivery or pick-up FREE at Kaitaia location
(Usually takes 3-6 working days)
LED SPST PCB tactile switch
LED Power Supply: 3.5-4V DC @ 25mA
Orientation Colour Cat #
Vertical Red SP-0612
Vertical Green SP-0613
Vertical Blue SP-0614
Horizontal Red SP-0615
Horizontal Green SP-0616
Horizontal Blue SP-0617
LED Power Supply: 3.5-4V DC @ 25mA
Orientation Colour Cat #
Vertical Red SP-0612
Vertical Green SP-0613
Vertical Blue SP-0614
Horizontal Red SP-0615
Horizontal Green SP-0616
Horizontal Blue SP-0617
Specifications:
| Switch Type | Tactile Pushbutton |
| Switch Function | Momentary / Lock Dual Function |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 100MΩ |
| Switch Connection | Solder Legs |
| Dielectric Strength | 100V |
| Switch Colour Coded | Blue |
| Mechanism Material | Plastic |
| Mounting Method | PCB |
| DC Voltage | 12V |
| DC current rating | 50A |
| AC Voltage rating | 250V |
